Risks and Precautions in Using UPVC Valves in Lithium-Containing Chemicals

The utilization of Chemical/Lithium UPVC/CPVC Valve (DIN/ANSI) components in lithium battery manufacturing and processing presents unique challenges that demand careful consideration. While UPVC valves offer excellent corrosion resistance and cost-effectiveness for many industrial applications, their performance in lithium-containing chemical environments requires thorough understanding of material limitations, chemical compatibility, and operational parameters. This comprehensive analysis examines the potential risks associated with UPVC valves in lithium applications and outlines essential precautions to ensure system reliability, safety, and longevity in these demanding operating conditions.

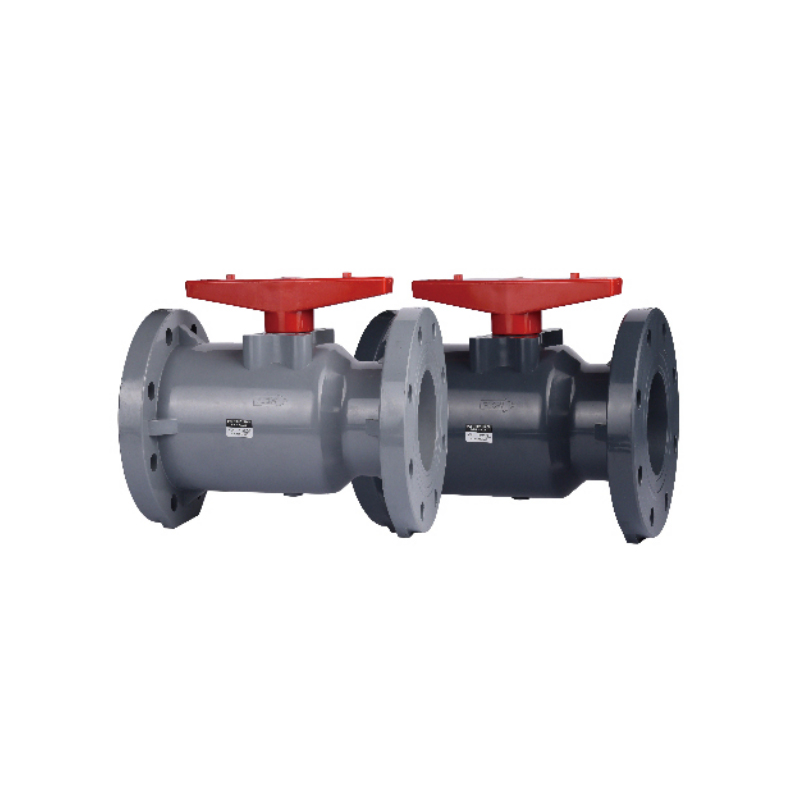

SCH8O/DIN One-piece Flange Ball Valve

Chemical Compatibility Challenges with Lithium Compounds

Understanding the chemical interactions between UPVC materials and various lithium compounds is fundamental to assessing application suitability. While UPVC demonstrates excellent resistance to many acids, bases, and inorganic salts, its performance with specific lithium-containing solutions varies significantly based on concentration, temperature, and exposure duration. The molecular structure of UPVC, comprising carbon-carbon backbone chains with chlorine substituents, can be susceptible to certain organic solvents and electrolyte components used in lithium battery production.

• Lithium Salt Solutions: UPVC generally shows good resistance to aqueous solutions of lithium salts like lithium hydroxide and lithium chloride at moderate concentrations and temperatures.
• Organic Electrolytes: Certain organic carbonates and esters used in lithium battery electrolytes can cause swelling, softening, or stress cracking in UPVC over extended exposure.
• Temperature Acceleration: Chemical degradation mechanisms accelerate significantly at elevated temperatures, reducing the safe operating window for UPVC components.
• Additive Interactions: Various electrolyte additives and processing chemicals may have unanticipated effects on UPVC material properties and longevity.

Temperature and Pressure Limitations in Lithium Processing

The operational temperature range represents a critical factor in UPVC valve temperature limitations lithium applications, as lithium battery manufacturing processes often involve elevated temperatures that approach or exceed UPVC's functional limits. While UPVC maintains excellent mechanical properties at room temperature, its strength decreases progressively as temperatures approach the material's heat distortion point, typically around 60-70°C. This thermal sensitivity necessitates careful system design and operational controls to prevent component failure under lithium processing conditions.

• Heat Distortion Temperature: UPVC begins to soften and lose dimensional stability above approximately 60°C, limiting high-temperature applications.
• Thermal Expansion Characteristics: UPVC exhibits relatively high thermal expansion coefficients, requiring accommodation in system design to prevent stress buildup.
• Pressure Derating: Maximum pressure ratings decrease significantly with increasing temperature, necessitating conservative design margins.
• Cyclic Thermal Stress: Repeated thermal cycling can lead to fatigue cracking, particularly at stress concentration points like threaded connections.

Managing Thermal Challenges in Lithium Battery Production

Specific lithium battery manufacturing processes present distinct thermal challenges that must be addressed through appropriate valve selection and system design. Electrode slurry preparation often occurs at elevated temperatures to reduce viscosity, while electrolyte filling requires precise temperature control to maintain optimal conductivity and wetting characteristics. Understanding these process-specific thermal profiles enables implementation of appropriate safeguards and alternative materials where UPVC's temperature limitations present unacceptable risks.

• Electrode coating and drying processes with elevated temperatures
• Calendaring operations generating significant frictional heat
• Electrolyte filling requiring precise temperature maintenance
• Formation cycling with variable thermal loads

Mechanical Stress and Fatigue Considerations

UPVC valves in lithium chemical service must withstand various mechanical stresses, including pressure fluctuations, water hammer, external loads, and thermal expansion forces. Unlike metallic alternatives, UPVC exhibits viscoelastic behavior, meaning its response to stress is both time-dependent and temperature-sensitive. This characteristic necessitates special consideration in system design, support spacing, and operation to prevent premature failure through creep, stress cracking, or brittle fracture mechanisms.

• Creep Behavior: UPVC components under continuous load gradually deform over time, potentially affecting sealing performance and dimensional stability.
• Impact Resistance: UPVC becomes increasingly brittle at lower temperatures, increasing vulnerability to impact damage during handling or operation.
• Notch Sensitivity: UPVC is highly sensitive to surface imperfections and stress concentrators, requiring careful machining and handling.
• Fatigue Endurance: Cyclic stress applications can initiate microcracks that propagate through the material over time.

Contamination Risks in Lithium Battery Manufacturing

Maintaining chemical purity is paramount in lithium battery production, where even minute contamination can compromise cell performance, cycle life, and safety. UPVC valve contamination risks battery production encompass multiple potential contamination mechanisms, including leachables extraction, particulate generation, microbial growth, and catalytic metal introduction. Understanding and mitigating these contamination vectors is essential for implementing UPVC valves in sensitive lithium battery manufacturing processes without compromising product quality.

• Extractables and Leachables: Plasticizers, stabilizers, and other additives may gradually migrate into process fluids, particularly with organic solvents.
• Particulate Generation: Wear debris, surface degradation, or improper machining can introduce particulate contamination.
• Metal Contamination: Metallic components in valve actuators or instrumentation connections may introduce catalytic metal ions.
• Biological Contamination: UPVC surfaces can support microbial growth in aqueous systems without proper biocide treatment.

Implementing Effective Contamination Control Strategies

Successful implementation of UPVC valves in lithium battery manufacturing requires comprehensive contamination control strategies addressing each potential contamination mechanism. Material selection should prioritize UPVC formulations with minimal extractables, while system design should minimize dead legs and areas prone to particulate accumulation. Regular monitoring and maintenance protocols help identify developing contamination issues before they impact product quality, ensuring consistent manufacturing outcomes.

• Material certification for low extractables and specific purity requirements
• Surface finish specifications to minimize particulate adhesion and generation
• Cleanroom assembly and packaging to preserve component cleanliness
• Regular fluid sampling and analysis to monitor contamination levels

Preventive Measures and Alternative Solutions

Implementing preventive measures UPVC valves lithium chemicals involves a multi-faceted approach addressing material selection, system design, operational procedures, and maintenance protocols. While UPVC valves offer economic advantages for certain applications, recognizing their limitations and implementing appropriate safeguards ensures reliable performance where their use is technically justified. For applications exceeding UPVC's capabilities, alternative materials provide viable solutions with enhanced performance characteristics.

• Comprehensive Compatibility Testing: Conduct application-specific chemical compatibility testing under actual operating conditions.
• Conservative Design Margins: Apply generous safety factors to pressure and temperature ratings based on specific service conditions.
• Regular Inspection Protocols: Implement scheduled visual inspections and non-destructive testing to identify developing issues.
• Staff Training and Procedures: Ensure operational personnel understand UPVC-specific handling and operational requirements.

Alternative Material Considerations

Where UPVC's limitations present unacceptable risks for specific lithium chemical applications, several alternative materials offer enhanced performance characteristics. CPVC provides higher temperature capability while maintaining similar chemical resistance, while PVDF and PTFE offer superior resistance to organic solvents and higher purity characteristics. The selection of alternative materials involves balancing performance requirements, cost considerations, and system compatibility to identify the optimal solution for each application.

• CPVC for elevated temperature applications with similar chemical resistance
• PVDF for enhanced purity requirements and broad chemical compatibility
• PTFE for maximum chemical resistance and high-temperature capability
• PP-H for cost-effective alternatives in specific chemical environments

Installation and Maintenance Best Practices

Proper installation and maintenance are critical for maximizing UPVC valve performance and service life in lithium chemical applications. UPVC valve installation maintenance lithium plants requires specific techniques differing from metallic valve practices, addressing UPVC's unique material properties and vulnerability to certain failure mechanisms. From proper support design to appropriate assembly techniques, attention to installation details significantly impacts long-term reliability and safety.

• Support System Design: UPVC piping requires more frequent supports than metallic systems to prevent sag-induced stress on valve bodies.
• Thermal Expansion Management: Proper use of expansion loops, guides, and anchors prevents stress accumulation at valve connections.
• Assembly Techniques: Solvent cement joining requires proper surface preparation, application technique, and cure time to ensure joint integrity.
• Operational Training: Personnel should understand UPVC-specific operational considerations, including gradual valve operation to prevent water hammer.

Developing Comprehensive Maintenance Protocols

Effective maintenance programs for UPVC valves in lithium chemical service should address both preventive and predictive maintenance approaches. Regular visual inspections can identify early signs of degradation, while periodic functional testing ensures proper operation. Maintenance records should track valve performance over time, enabling trend analysis and optimization of maintenance intervals based on actual service conditions rather than generic recommendations.

• Visual inspection schedules for signs of chemical attack or stress
• Operational testing to verify smooth function and complete closure
• Preventive replacement of critical components based on service hours
• Documentation of all maintenance activities for trend analysis

FAQ

What are the most critical factors when selecting UPVC valves for lithium chemical service?

The selection process should prioritize comprehensive chemical compatibility assessment, temperature and pressure alignment with UPVC capabilities, contamination control requirements, and mechanical stress considerations. Particular attention should focus on the specific lithium compounds, solvents, and operating conditions the valves will encounter. Applications involving organic electrolytes typically present greater challenges than those handling aqueous lithium salt solutions, necessitating more rigorous evaluation and potentially alternative materials.

How does temperature affect UPVC valve performance in lithium applications?

Temperature significantly impacts UPVC valve temperature limitations lithium applications through multiple mechanisms. As temperature increases, UPVC's mechanical strength decreases, chemical degradation accelerates, and dimensional changes occur through thermal expansion. These effects collectively reduce the safe operating envelope, requiring conservative design margins and potentially limiting UPVC to lower-temperature applications within lithium battery manufacturing processes.

What contamination risks do UPVC valves present in battery production?

UPVC valve contamination risks battery production primarily involve extractables migration, particulate generation, and potential metallic introduction from ancillary components. High-purity UPVC formulations minimize extractables, while proper machining and surface finishing reduce particulate concerns. Implementation of diaphragm valves or other designs that isolate metallic components from process fluids addresses metallic contamination risks, ensuring compatibility with stringent battery manufacturing purity requirements.

What preventive measures are most effective for UPVC valves in lithium service?

Effective preventive measures UPVC valves lithium chemicals include comprehensive compatibility testing, conservative design margins, regular inspection protocols, and proper staff training. Additionally, implementing secondary containment, pressure relief devices, and emergency shutdown procedures provides layers of protection against potential failure consequences. For critical applications, continuous monitoring of system parameters enables early detection of developing issues before they progress to failure.

When should alternative materials be considered instead of UPVC?

Alternative materials should be considered when operating temperatures regularly exceed 60°C, when handling aggressive organic solvents, when maximum purity requirements exceed UPVC capabilities, or when mechanical stresses approach UPVC's limitations. CPVC represents a logical first alternative for moderately elevated temperatures, while PVDF or PTFE offer solutions for more demanding chemical, temperature, or purity requirements.
