ZHEYI Group is China SCH8O/DIN UPVC/CPVC One-piece Flange Ball Valve For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC One-piece Flange Ball Valve For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.
Product Introduction

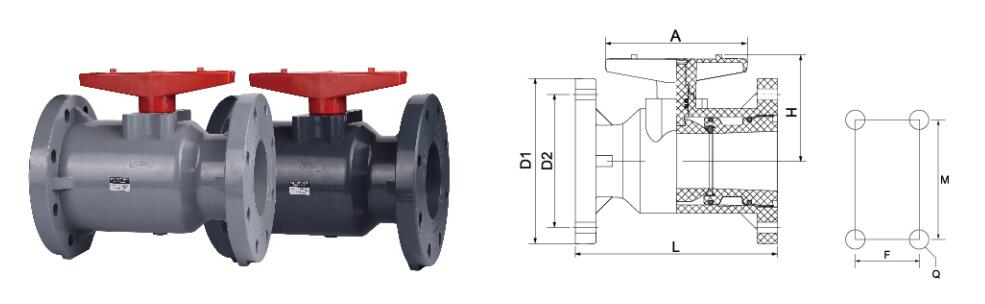

The SCH8O/DIN UPVC/CPVC One-piece Flange Ball Valve is an engineered thermoplastic shut-off device designed for aggressive chemical transport and high-purity water systems. Constructed from either unplasticized polyvinyl chloride (UPVC) or chlorinated polyvinyl chloride (CPVC), this valve series features a monolithic body where flanges are integrally molded with the valve housing. This one-piece construction eliminates traditional joint connections between body and end flanges, reducing potential leak paths in critical applications. The full port ball design provides unrestricted flow when open, and the PTFE or EPDM seat materials ensure bubble-tight sealing against a range of media including acids, alkalis, solvents, and ultrapure water. The valve complies with DIN standard flange drilling patterns, enabling direct integration into European-specification piping networks without custom adapters.
Core Advantages
Product Characteristics
- Body Material: UPVC (Type 1, Grade 1) or CPVC (per ASTM D1784)
- Connection Type: One-piece integrally molded flange, DIN 2501 PN10/16
- Seat Material: PTFE (standard) or EPDM (for water and mild chemicals)
- Ball Material: Chrome-plated brass (UPVC) or solid CPVC (CPVC body)
- Stem Seals: Dual O-ring configuration with external adjustable gland
- Handle Type: Lever handle with 90-degree travel, lockable in open and closed positions
- Pressure Rating: PN10 for UPVC (0-50°C); PN16 for CPVC (0-50°C)
- Temperature Range: UPVC 0°C to +60°C; CPVC 0°C to +93°C
- Vacuum Service: Suitable for 0.5 bar absolute pressure at 20°C
- Color: Light gray (RAL 7032) for UPVC; Light gray or off-white for CPVC
Technical Specifications
Application Scenarios
This valve series is deployed across multiple industrial fluid handling systems requiring corrosion resistance and contamination control. Specific applications include:
Media compatibility includes hydrochloric acid (up to 30%), sulfuric acid (up to 50% at 25°C), sodium hydroxide (up to 30%), sodium hypochlorite (up to 12% for CPVC), deionized water, and industrial process water with suspended solids below 200 μm.
