CPVC Pipe pressure

The suppression of CPVC is a high-performance plastic pipe widely used in the food industry, automotive industry, electronics, water supply, chemical industry and construction industry. These pipes made of chlorinated polyvinyl chloride (CPVC) are resistant to corrosion that are resistant to high -temperature, resistant to acid and alkalis and can work stably at a temperature of up to 93 ° C. CPVC pipes are low to fluid and can increase the overall efficiency of the system. They meet several international standards for ensuring security and reliability. $ Dollar

PREV：No previous article
NEXT：No next article

Parameter Application Technical Standards

CPVC pipes for industrial

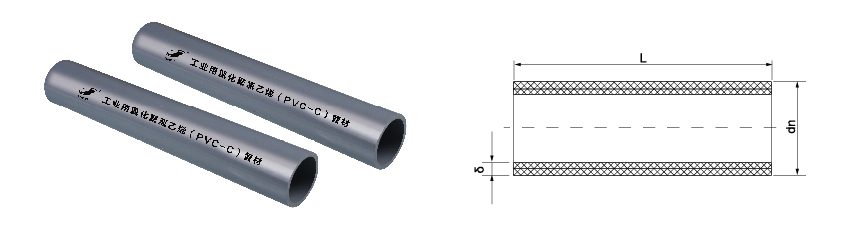

Nominal external diameter DN	Nominal diameter DN	Wall thickness and deviation
		S10	S6.3
		1.0 MPa	1.6 MPa
20	15	-	2.0 ^0.4 ₀ (S5)
25	20	-	2.3 ^0.5 _{0 (S5)}
32	25	-	2.4 ^0.5 ₀
40	32	2.0 ^0.4 ₀	3.0 ^0.5 ₀
50	40	2.4 ^0.5 ₀	3.7 ^0.6 ₀
63	50	3.0 ^0.5 ₀	4.7 ^0.7 ₀
75	65	3.6 ^0.6 ₀	5.6 ^0.8 ₀
90	80	4.3 ^0.7 ₀	6.7 ^0.9 ₀
110	100	5.3 ^0.8 ₀	8.1 ^1.1 ₀
140	125	6.7 ^0.9 ₀	10.3 ^1.3 ₀
160	150	7.7 ^1.0 ₀	11.8 ^1.4 ₀
225	200	10.8 ^1.3 ₀	16.6 ^1.9 ₀
280	250	13.4 ^1.6 ₀	-
315	300	15.0 ^1.7 ₀	-
355	350	16.9 ^1.9 ₀	-
400	400	19.1 ^2.2 ₀	-

L: The standard length is 4 m, it can be tuned to the length of the batch l. $

CPVC pipelines are suitable for the next application

● transmission of acidic or alkaline liquids in chemical oil refineries, metallurgical plants, electric jackets, pharmaceutical factories and oil refineries;
● pipe transmission and cleaning for bleaching, staining and wastewater in textile mills and leather factories;
● power station, transmission for mines, fertilizers for a paper mill and sea water;
● water treatment at a semiconductor factory;
● tubercles for aluminum plants, caustic alkaline plants, plants of chlorine dioxide, chlorine plants and chlorcal;
● tuberculosis for chlorination, aluminum chloride solution, iron chloride solution, sedimentation and processing of restored water;
● pipelines for filtering the brine, ELEC Trobath, freshwater anti -chlorination, decomposition of chlorite, processing of chloride and drying;
● pipelines for milk, sour milk, drinks, foods and factory water supply;
● pipelines for cold or hot water, clean drinking water, water, heated sun energy, fire sprinklers, air conditioning water and hot springs. $. $

Standards

Standards: GB/T18998.1 、 GB/T18998.2 、 GB/T18998.3

The main function is performance

Temperature range: -10 ° C ~ 90 ° C.
Pressure range: -0.001 ~ 1.6 MPa
Linear thermal expansion: 6.0x10 ^-5 m/m ℃

Test element	Technical requirements	Test standard
Density	1450 ～ 1650 kg/m³	GB/T1033
Vikate softening temperature (pipes)	≥110 ℃	GB/T8802
Vikate softening temperature (fittings)	≥103 ℃	GB/T8802
Longitudinal reversion (pipes)	≤5%	GB/T6671
Chlorine (mass percentage)	≥60%	GB/T7139
Optic test (fittings)	No stratification and cracks	GB/T8803

Test elements	The test parameter			Technical requirements
Test elements	Temperature/℃	Time/h	Pressure/MPa	Technical requirements
Water pressure test	20	≥1	43.0	No crack and leakage
	95	≥65	5.6
	95	≥1000	4.6
Thermal stability test in the hydrostatic state	95	≥8760	3.6	No crack and leakage
Bun through the weight of weight (0 ℃ TIR)				≤10%
Uitimate stretching force				≥56 MPa

Test elements	The test parameter			Technical requirements
Test elements	Temperature/℃	Time/h	Pressure/MPa	Technical requirements
Water pressure test	20	≥1000	28.1	No crack and leakage
	60	≥1	21.1
	80	≥1000	6.9
Thermal stability test in the hydrostatic state	90	≥17520	2.85	No crack and leakage $ dollar

Company

Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China CPVC Pipe pressure For Food Industry/Automotive/Electronic Suppliers and Custom CPVC Pipe pressure For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor

News

UPVC Valves: The Cornerstone of Modern Fluid Control
Aug 07,2025
1. UPVC Valves: The Cornerstone of Modern Fluid Control In modern industry, agriculture, and municipal construction, fluid control is a core component that ensures systems run efficiently and safely. Whether it's transpo...
READ MORE
UPVC/CPVC Chemical Pipeline: Materials, Applications, and ...
Jul 31,2025
Understanding UPVC and CPVC Chemical Pipelines Chemical pipelines made from UPVC/CPVC materials have become essential components in various industrial applications due to their exceptional resistance to corrosive substan...
READ MORE
UPVC/CPVC Pipe Fittings: A Comprehensive Guide to Selectio...
Jul 24,2025
Understanding the Basics of UPVC/CPVC Pipe Fittings When working with plumbing or industrial piping systems, understanding the differences and applications of UPVC/CPVC pipe fittings is crucial. These thermoplastic mater...
READ MORE

Message Feedback

CPVC Pipe pressure Industry knowledge

Key points CPVC pipe pressure Installation and welding technology: Avoid general construction defects

CPVC (chlorinated polyvinyl chloride) is widely used in many industries, including CPVC tubular pipe, drinking water CPVC, industrial water treatment, industrial wastewater CPVC, etc., from its excellent corrosion stability, high temperature stability (up to 90 ° C) and safety and sanitary performance. Nevertheless, incorrect installation and welding can lead to problems such as leak and decrease in strength. Below are key construction points and precautions in industry applications:

1. Material of preliminary processing and storage
Dry and clean: before welding, the surface of the CPVC pipe should be free from oil and dust, especially when using a high point of view in the industry, such as the CPVC electronic semiconductor pipe and a CPVC medicine to avoid pollution.
Avoid the effects of the sun. Long -term ultraviolet radiation will reduce CPVC strength, and measures from the sunny step should be taken in external applications such as the CPVC photoelectric pipe.

2. Cutting and accumulation
Use special cutting tools: make sure that the cutter is smooth to prevent gaps during welding.
Fighting: Especially when using CPVC in drinking water systems, bacteria can dilute bacteria or affect the flow.

3. Key technologies for welding solvent
Use special glue for CPVC: regular PVC glue is not suitable and can lead to insufficient read welding.
Apply evenly: apply the nest and flavor quickly and evenly to avoid the accumulation of glue or insufficient glue.
Do not rotate after the insert: rotation will lead to an uneven distribution of glue and affects the seal, which is especially important in high -pressure systems, such as CPVC nuclear energy.

4. Thermal expansion and support design
Consider the thermal lengthening: CPVC has a high thermal expansion coefficient, and the extension joints or flexible joints should be reserved in high -temperature media, such as CPVC pipes.
Reasonable support settings: Avoid the sagging of pipes, especially when transporting industrial wastewater CPVC over long distances.

5. Verification of pressure and acceptance
24-hour pressure test: make sure that the leak, especially the CPVC drinking water system, must comply with hygiene standards.
Avoid a sudden increase in pressure: gradually increase pressure to prevent the gap of the weld, if it is not completely cured.

Special requirements for the industry
The high purity industry (such as electronics and medicine): after installation, ultrapiral flushing of the water is required to ensure the absence of a residual solvent.
Corrosion media (such as industrial wastewater and metallurgy): Select CPVC pipes with higher pressure ratings and regularly check the aging of welded ears. . $
