SCH8O/DIN UPVC/CPVC Flang Diaphragm Valve

The UPVC/CPVC flanged diaphragm valve is a fluid control device designed for handling corrosive liquids and gases. It is suitable for various industries, including chemical processing, wastewater treatment, and food processing.

The unique structure of the flanged diaphragm valve provides sealing performance during opening and closing, effectively preventing leaks. This design ensures the safe transport of fluids and extends the valve’s service life. The valve is easy to operate, allowing users to control flow effortlessly through manual or pneumatic methods to meet the demands of different operating conditions.

Our UPVC/CPVC flanged diaphragm valves also feature wear resistance and aging resistance. They are widely used in fields such as chemical processing, wastewater treatment, and agricultural irrigation.

PREV：SCH8O/DIN Union Diaphragm Valve
NEXT：SCH8O/DIN One-piece Flange Ball Valve

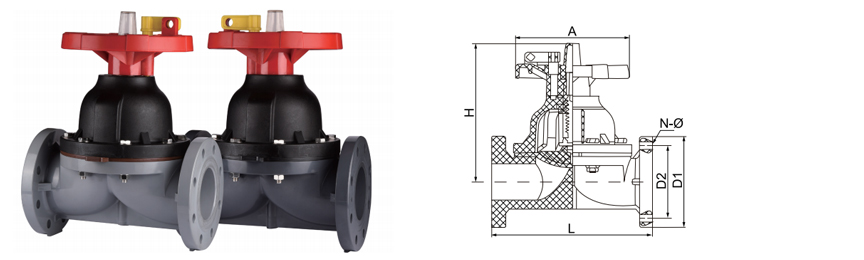

Parameter Application Technical Standards

SIZE/NOM.		dn32	dn40	dn50	dn63	dn75	dn90	dn110	dn140
		(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)	(DN125)
		(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")	(5")
D1	DIN	115	140	150	165	185	200	220	254
	ANSI	108	117	128	155	178	192	229	254
	JIS	90	100	105	120	140	150	175	210
D2	DIN	85	100	110	125	145	160	180	210
	ANSI	79	89	98	121	140	152	191	216
	JIS	42.5	48.5	61	73	90	105	132	158
N-Φ	DIN	4-Φ14	4-Φ18	4-Φ18	4-Φ18	4-Φ18	8-Φ18	8-Φ18	8-Φ18
	ANSI	4-Φ16	4-Φ16	4-Φ16	4-Φ19	4-Φ19	4-Φ19	4-Φ19	8-Φ22
	JIS	4-Φ19	4-Φ19	4-Φ19	4-Φ19	4-Φ19	8-Φ19	8-Φ19	8-Φ23
L		145	160	180	210	250	300	350	400
A		87	100	117	137	178	214	265	265
H		115	132	148	175	235	305	350	356

Company

Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN UPVC/CPVC Flang Diaphragm Valve For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC Flang Diaphragm Valve For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor

News

The Ultimate Guide to UPVC Pipes for Chemical & Lithium In...
Jun 19,2025
UPVC (Unplasticized Polyvinyl Chloride) pipes are widely used in chemical processing, lithium extraction, and high-pressure industrial applications due to their corrosion resistance, durability, and compliance with inter...
READ MORE
High-Performance UPVC Pipes for Harsh Industrial Environme...
Jun 12,2025
UPVC pipes are widely used in industries requiring exceptional chemical resistance and durability. This article explores key features of high chemical resistance UPVC pipes for lithium industry, corrosion-proof UPVC pipi...
READ MORE
Chemical/Lithium UPVC/CPVC Fittings: Essential Components ...
Jun 05,2025
CPVC Piping for Lithium Battery Production: Ensuring Safety and Efficiency The booming lithium battery industry demands high-performance piping systems that can withstand aggressive chemicals and high temperatures. CPVC ...
READ MORE

Message Feedback

SCH8O/DIN UPVC/CPVC Flang Diaphragm Valve Industry knowledge

Analysis of structural characteristics and corrosion resistance of UPVC/CPVC flange diaphragm valves

UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) flange diaphragm valves are widely used in many industrial fields due to their unique structural design and excellent corrosion resistance. The following analysis is made from the two aspects of structural characteristics and corrosion resistance, combined with typical industry application scenarios.

1. Structural characteristics
Diaphragm seal: elastic diaphragm (such as EPDM, PTFE) is used as the opening and closing element to achieve zero leakage, avoid contact between the medium and the metal parts in the valve body, and is suitable for high-purity or corrosive fluids.
Flange connection: standard flange design (such as ANSI, DIN) is easy to install and disassemble, suitable for high-pressure pipeline systems.
Lightweight material: The weight of the UPVC/CPVC valve body is much lower than that of metal valves, reducing installation costs and having high mechanical strength.
Streamlined flow channel: low flow resistance design, reducing medium deposition, suitable for working conditions containing particles or viscous fluids.

2. Corrosion resistance
UPVC and CPVC have excellent corrosion resistance to acids, alkalis, salts and organic solvents, but there are slight differences between the two:
UPVC: Suitable for weak acid, weak alkali and salt water environments at room temperature (≤60°C), such as drinking water, industrial water treatment, etc.
CPVC: Higher temperature resistance (≤90°C), can withstand strong acids (such as hydrochloric acid, sulfuric acid) and oxidants, widely used in ultrapure water systems in the electronic semiconductor industry, chemical liquid transportation in the photovoltaic industry, and cooling water treatment in nuclear power plants.

3. Industry application scenarios
Safe drinking water: UPVC diaphragm valves meet hygiene standards and are used in municipal water supply systems.
Metallurgy: CPVC valves are resistant to corrosion from electroplating solutions and pickling wastewater, and are suitable for smelter wastewater treatment (Industrial Wastewater).
Medicine: The diaphragm structure avoids contamination, meets GMP requirements, and is used for drug delivery.
Photovoltaic and electronics industry: The high purity characteristics of CPVC are suitable for key processes such as silicon wafer cleaning and etching solution control.
