Custom SCH8O/DIN Union Diaphragm Valve For Food Industry/Automotive/Electronic

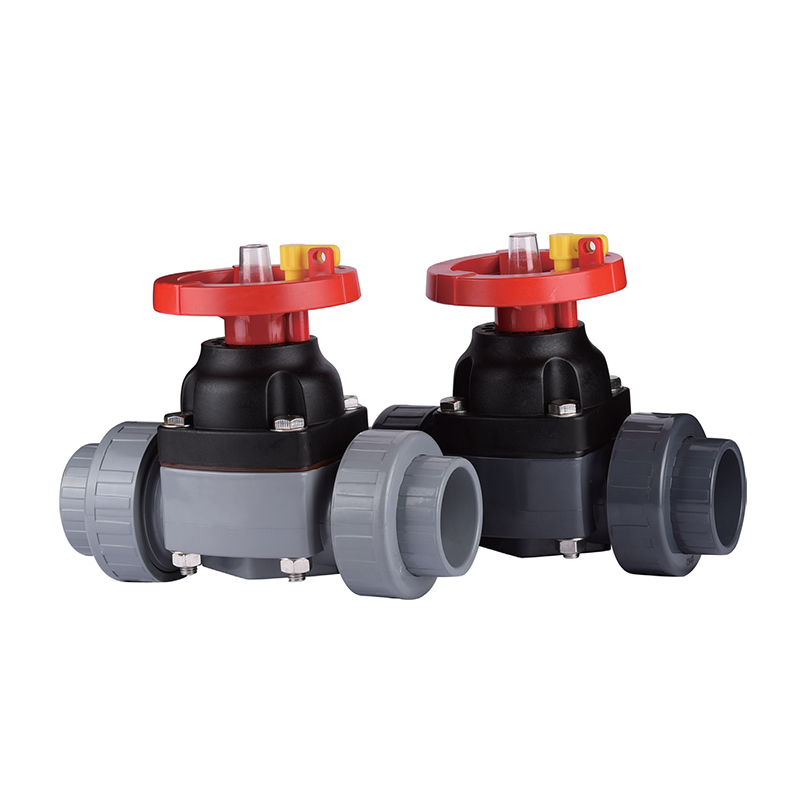

SCH8O/DIN Union Diaphragm Valve

SCH8O/DIN Union Diaphragm Valve

The joint diaphragm valve is an efficient fluid control device widely applied in industries such as chemical processing, pharmaceuticals, food processing, and water treatment. It is designed to deliver sealing performance, ensuring the safety and cleanliness of the medium.

The core feature of the joint diaphragm valve is its unique diaphragm structure. This design not only effectively isolates the valve body from the medium, preventing leaks and contamination, but also enables precise flow control. Users can easily adjust the fluid flow with simple manual or electric operation to meet the needs of different processes.

The valve is also easy to install and maintain, equipped with standard connection flanges suitable for various piping systems. Additionally, its design considers ease of cleaning, making it ideal for applications requiring high hygiene standards.

Contact Us
  • SCH8O/DIN Union Diaphragm Valve
PREV：SCH8O/DIN UPVC/CPVC Ⅰ Ball Valve
NEXT：SCH8O/DIN UPVC/CPVC Flang Diaphragm Valve

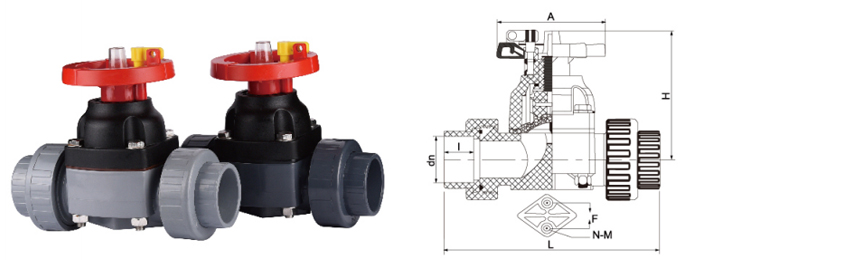

Parameter Application Technical Standards

  • SIZE/NOM.

    dn20

    dn25

    dn32

    dn40

    dn50

    dn63

     (DN15)

     (DN20)

     (DN25)

     (DN32)

     (DN40)

     (DN50)

    (1/2")

    (3/4")

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    d1

    DIN

    20.3

    25.3

    32.3

    40.3

    50.3

    63.3

    ANSI

    21.51

    26.87

    33.62

    42.4

    48.45

    60.65

    JIS

    22.4

    26.45

    32.56

    38.63

    48.73

    56.82

    d2

    DIN

    20.1

    25.1

    32.1

    40.1

    50.1

    63.1

    ANSI

    21.25

    26.6

    33.3

    42.06

    48.18

    60.27

    JIS

    21.75

    25.7

    31.71

    37.67

    47.76

    55.77

    L

    142

    162

    175

    196

    227

    272

    H

    90

    95

    105

    125

    145

    172

    A

    77

    77

    87

    100

    117

    137

    I

    22

    22

    22

    26

    32

    39

    N-M

    2-M6

    2-M6

    2-M6

    2-M8

    2-M8

    2-M8

    F

    25

    25

    25

    36

    36

    45
Recommended Products
Company
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN Union Diaphragm Valve For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN Union Diaphragm Valve For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • ISO 45001:2018
  • ISO:45001-2018 En
  • national high-tech enterprise
  • Certificate
  • Certificate
News
Message Feedback

SCH8O/DIN Union Diaphragm Valve Industry knowledge

How to choose the material of Union Diaphragm Valve in chemical corrosive media?

In the chemical industry, the material selection of Union Diaphragm Valve (flange-connected diaphragm valve) is crucial because corrosive media (such as strong acids, strong alkalis, organic solvents, etc.) may damage the valve, causing leakage or failure. Different industries have different requirements for the corrosion resistance, sealing and service life of valves. The following are material selection recommendations for several key industries:

1. Safe Drinking Water
Recommended material: EPDM (ethylene propylene diene monomer rubber) diaphragm + 316L stainless steel valve body
Reason: EPDM is chlorine-resistant and oxidation-resistant, and meets the drinking water hygiene standards; 316L stainless steel is corrosion-resistant and has no pollution risk.

2. Metallurgy
Recommended material: PTFE (polytetrafluoroethylene) diaphragm + Hastelloy valve body
Reason: The metallurgical industry is often exposed to strong acids (such as sulfuric acid, hydrochloric acid) and high-temperature media. PTFE is resistant to strong corrosion, and Hastelloy is resistant to high temperature and chemical erosion.

3. Photovoltaic (Photovoltaic Industry)
Recommended material: PVDF (polyvinylidene fluoride) diaphragm + PP (polypropylene) valve body
Reason: The photovoltaic industry involves corrosive chemicals such as hydrofluoric acid (HF), and PVDF and PP have excellent acid resistance.

4. Nuclear Power (Nuclear Power Industry)
Recommended material: PTFE diaphragm + titanium alloy (Titanium) valve body
Reason: The medium of nuclear power plants may contain boric acid and radioactive substances. Titanium alloys are radiation-resistant and corrosion-resistant, and PTFE provides reliable sealing.

5. Electronic Semiconductor (Electronic Semiconductor)
Recommended material: PFA (perfluoroalkoxy resin) diaphragm + high-purity PVDF valve body
Reason: The semiconductor industry requires ultra-high purity and low particle contamination. PFA and PVDF do not precipitate impurities and are resistant to high-purity chemicals (such as hydrofluoric acid and ammonia).

6. Medicine (Pharmaceutical Industry)
Recommended material: Silicone or PTFE diaphragm + 316L stainless steel valve body
Reason: The pharmaceutical industry needs to comply with FDA standards. Silicone and PTFE are non-toxic and resistant to sterilization (such as CIP/SIP). 316L is easy to clean and rust-proof.

7. Industrial Water Treatment (Industrial Water Treatment)
Recommended material: EPDM or FKM (fluororubber) diaphragm + CF8M (316 stainless steel) valve body
Reason: EPDM is suitable for general water treatment, FKM is resistant to oil and oxidants; 316 stainless steel is resistant to chlorine and salt water corrosion.

8. Industrial Wastewater (Industrial Wastewater Treatment)
Recommended material: PTFE or FFKM (perfluoroether rubber) diaphragm + duplex steel (Duplex 2205) valve body
Reason: Wastewater contains strong acids, strong alkalis or organic solvents. PTFE/FFKM is resistant to chemical corrosion, and duplex steel is resistant to chloride stress corrosion.

9. Drinking Water (drinking water system)
Recommended material: EPDM diaphragm + bronze or 316 stainless steel valve body
Reason: EPDM meets sanitary standards, bronze or 316 stainless steel is corrosion-resistant and does not affect water quality.

Don't miss out. Contact us to get the latest information!
