Custom SCH8O/DIN UPVC/CPVC Faucet Elbow For Food Industry/Automotive/Electronic

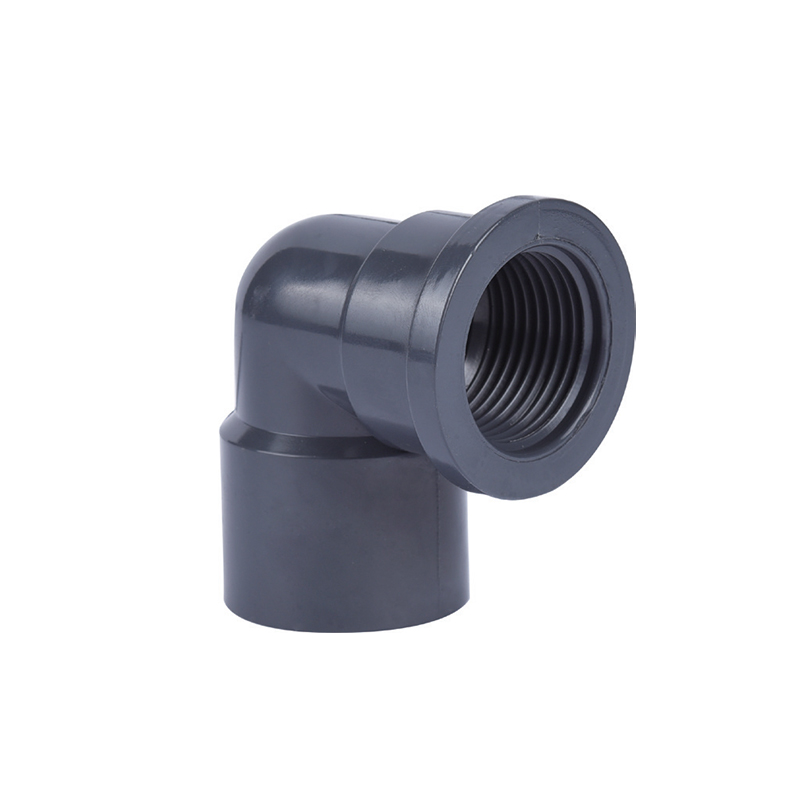

SCH8O/DIN UPVC/CPVC Faucet Elbow

SCH8O/DIN UPVC/CPVC Faucet Elbow

The UPVC/CPVC faucet elbow withstands high temperatures and pressures, effectively managing water flow pressure for system stability and safety. Its lightweight nature facilitates installation, reducing transportation and construction burdens.

The smooth inner wall design significantly minimizes water flow resistance, improving efficiency, saving energy, and lowering water costs. Ideal for pipe turns in water supply and drainage systems, our elbows offer reliable sealing performance to prevent leakage, making them suitable for various piping applications.

Contact Us
  • SCH8O/DIN UPVC/CPVC Faucet Elbow
PREV：SCH8O/DIN UPVC/CPVC Y Bracket
NEXT：SCH8O/DIN UPVC/CPVC Meter Joint

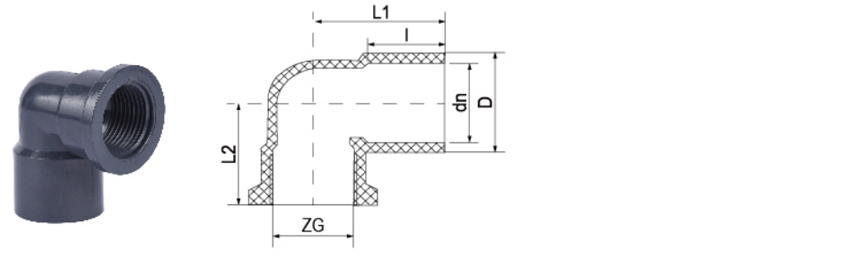

Parameter Application Technical Standards

  • dn

    DN

    D

    I

    L1

    L2

    ZG

    20

    15

    26.5

    20.5

    32.5

    31.5

    1/2"

    25

    20

    32

    26

    40.5

    36.5

    3/4"

    32

    25

    40

    29

    49.5

    40.5

    1”
Recommended Products
Company
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN UPVC/CPVC Faucet Elbow For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC Faucet Elbow For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • ISO 45001:2018
  • ISO:45001-2018 En
  • national high-tech enterprise
  • Certificate
  • Certificate
News
Message Feedback

SCH8O/DIN UPVC/CPVC Faucet Elbow Industry knowledge

Selection factors of UPVC/CPVC elbows in industrial and domestic water systems: pressure, temperature and flow analysis

In industrial and domestic water systems, the selection of UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) elbows (Faucet Elbow) directly affects the safety, durability and operating efficiency of the system. When selecting, it is necessary to comprehensively consider the pressure level, temperature adaptability, fluid medium and flow requirements, and combine the special requirements of different industries. The following are key selection factors and typical industry application analysis:

1. Pressure level: matching system pressure requirements
UPVC: suitable for medium and low pressure systems (usually ≤16bar), commonly used in civil drinking water (Drinking Water), industrial water treatment (Industrial Water Treatment) and other scenarios.
CPVC: Stronger pressure bearing capacity (up to 25bar or more), suitable for high pressure and high temperature environments, such as photovoltaic (Photovoltaic) cooling systems, nuclear power plant (Nuclear Power) auxiliary pipelines, etc.

Industry application differences:
Metallurgy: Circulating cooling water systems require high pressure elbows, CPVC is better.
Electronic Semiconductor: Ultrapure water delivery requires low pressure but high cleanliness, and UPVC is more economical.

2. Temperature adaptability: Distinguish between hot and cold water and extreme environments
UPVC: Temperature range 0°C~60°C, suitable for normal temperature drinking water (Safe Drinking Water) or industrial wastewater (Industrial Wastewater) discharge.
CPVC: Temperature resistance up to 90°C~110°C, suitable for high temperature process fluids, such as steam sterilization pipes in the medicine industry or thermal oil circulation systems in photovoltaic plants.

Key scenarios:
Nuclear Power: Non-core cooling pipes require high temperature resistant and anti-corrosion materials, and CPVC is the preferred choice.
Industrial Water Treatment: Acid and alkali waste liquid transportation requires temperature resistance and corrosion resistance, and CPVC is more reliable.

3. Flow and fluid media: Chemical compatibility and flow rate design
Flow requirements: The elbow diameter must match the system design flow rate (e.g. UPVC is commonly used in drinking water systems. DN20-DN50).

Chemical compatibility:
UPVC is resistant to weak acids and weak bases, and is suitable for ultrapure water systems in electronic semiconductors.
CPVC is resistant to strong acids and solvents, and is suitable for chemical agent transportation in the medicine industry.

Industry cases:
Photovoltaic: The coolant contains ethylene glycol, and CPVC has better chemical corrosion resistance.
Metallurgy: Wastewater containing metal particles requires wear-resistant elbows, and UPVC requires lining reinforcement.

4. Industry compliance and safety standards
Drinking water: Must comply with NSF/ANSI 61 certification, and both UPVC/CPVC must be lead-free.
Nuclear power plants: Must meet nuclear power grade material specifications such as ASME B31.1.
Medicine: FDA-certified materials are required to avoid the release of contaminants.
