Custom SCH8O/DIN UPVC/CPVC Ⅱ Ball Valve For Food Industry/Automotive/Electronic
SCH8O/DIN UPVC/CPVC Ⅱ Ball Valve

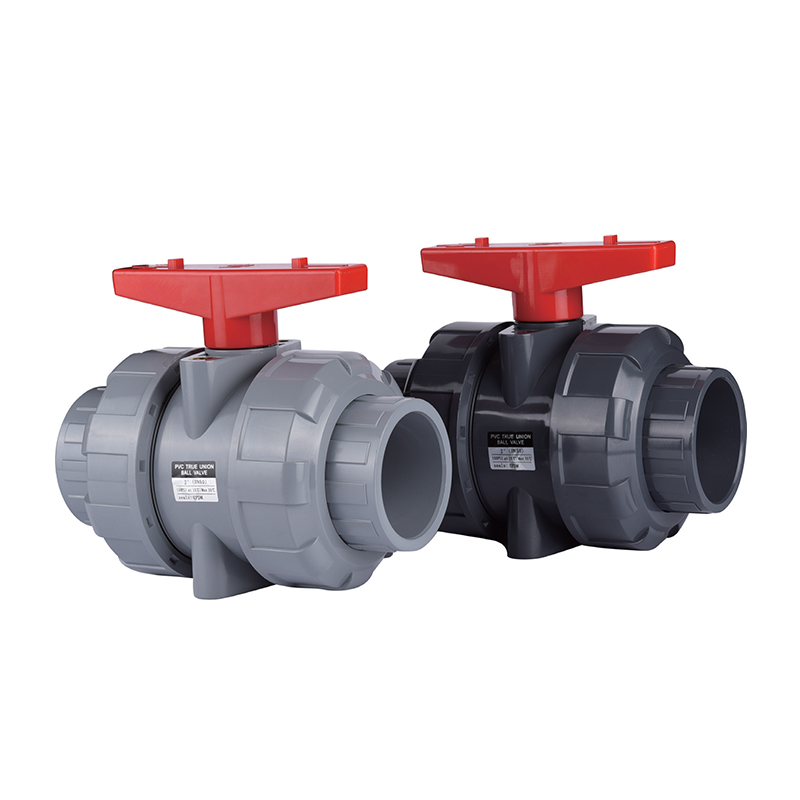

SCH8O/DIN UPVC/CPVC Ⅱ Ball Valve

The UPVC/CPVC II ball valve is a high-performance fluid control device widely used in water treatment, chemical processing, pharmaceuticals, and food processing industries. The design concept of the II ball valve emphasizes user experience, with its streamlined structure reducing fluid resistance and enhancing flow efficiency.

The valve is easy to operate and can be controlled manually or automatically, ensuring flexible application under various conditions. The valve body is precision-machined to ensure reliable sealing performance and minimize leakage risks. Lightweight and easy to install and maintain, the UPVC/CPVC II ball valve is an indispensable component in pipeline systems, especially in scenarios requiring strict flow and pressure control.

Contact Us
  • SCH8O/DIN UPVC/CPVC Ⅱ Ball Valve
PREV：SCH8O/DIN UPVC/CPVC Handle Butterfly Valve
NEXT：SCH8O/DIN UPVC/CPVC Ⅰ Ball Valve

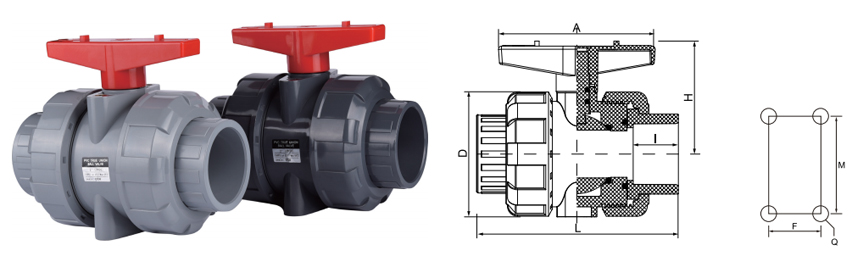

Parameter Application Technical Standards

  • SIZE/NOM.

    dn20

    dn25

    dn32

    dn40

    dn50

    dn63

    dn75

    dn90

    dn110

    (DN15)

    (DN20)

    (DN25)

    (DN32)

    DN40)

    (DN50)

    (DN65)

    (DN80)

    (DN100)

    (1/2")

    (3/4")

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    (2-1/2")

    (3")

    (4")

    d1

    DIN

    20.3

    25.3

    32.3

    40.3

    50.3

    63.3

    75.3

    90.3

    110.4

    ANSI

    21.51

    26.87

    33.62

    42.4

    48.54

    60.65

    73.39

    89.31

    114.81

    JIS

    22.4

    26.45

    32.56

    38.63

    48.73

    56.82

    58.63

    89.66

    114.27

    d2

    DIN

    20.1

    25.1

    32.1

    40.1

    50.1

    63.1

    75.1

    90.1

    110.1

    ANSI

    21.25

    26.6

    33.3

    42.06

    48.18

    60.27

    72.9

    88.8

    114.21

    JIS

    21.75

    25.7

    31.71

    37.67

    47.76

    55.77

    57.67

    88.63

    113.2

    I

    22

    22

    24

    28

    31

    38

    44

    51

    61

    A

    85

    90

    105

    115

    125

    137

    155

    176

    206

    D

    56

    63

    75

    85

    99

    118

    141

    164

    202

    H

    49

    55

    65

    75

    86

    100

    120

    138

    160

    L

    105

    116

    132

    149

    165

    190

    235

    270

    320

    M

    31

    33

    40

    52

    52

    70

    84

    84

    121

    F

    -

    -

    -

    -

    -

    -

    45

    45

    49

    Q

    2×M6

    2×M6

    2×M6

    2×M8

    2×M8

    2×M8

    4×M10

    4×M10

    4×M10
Recommended Products
Company
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN UPVC/CPVC Ⅱ Ball Valve For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC Ⅱ Ball Valve For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • ISO 45001:2018
  • ISO:45001-2018 En
  • national high-tech enterprise
  • Certificate
  • Certificate
News
Message Feedback

SCH8O/DIN UPVC/CPVC Ⅱ Ball Valve Industry knowledge

How to correctly select UPVC/CPVC Ⅱ ball valve? Key parameters and working condition matching guide

UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) Ⅱ ball valves are widely used in many industries due to their excellent corrosion resistance, lightweight design and economy. Correct selection requires comprehensive consideration of material properties, working conditions and industry standards. The following are key selection factors and typical industry application matching guides:

1. Media compatibility: chemical corrosion and fluid type
Safe Drinking Water & Drinking Water: Must comply with FDA or NSF standards to ensure that no harmful substances are precipitated. UPVC ball valves are more suitable due to their low toxicity.

Industrial Wastewater & Industrial Water Treatment: Must be resistant to acids, alkalis, salts and organic solvents. CPVC is suitable for high-temperature wastewater scenarios due to its higher temperature resistance (up to 90°C).

Electronic Semiconductor & Medicine: High-purity media require the inner wall of the valve body to be smooth and free of residue. UPVC/CPVC ball valves need to be equipped with high-precision polishing technology.

2. Temperature and pressure range
Photovoltaic: Cooling fluid or acid-base circulation system is usually at medium and low temperature (0~60°C), UPVC can meet the requirements.
Metallurgy: It may be exposed to high temperature pickling liquid (such as sulfuric acid and hydrochloric acid), and CPVC has better temperature resistance (-10°C~110°C).
Nuclear Power: Auxiliary water system needs radiation resistance and long-term stability, and CPVC modified materials or special coatings may be necessary options.

3. Structural design and industry specifications
Fireproof and anti-static requirements: Chemical or Electronic Semiconductor industries may require anti-static valve stem design.

Connection method:
Industrial Water Treatment often uses flange connection to facilitate disassembly and maintenance.
The Medicine industry tends to use sanitary quick-release clamp connection.

4. Industry-specific certifications
Safe Drinking Water requires NSF/ANSI 61 certification.
Nuclear Power needs to meet ASME NQA-1 nuclear grade standards.
Electronic Semiconductor may require SEMI F72 cleanliness certification.
