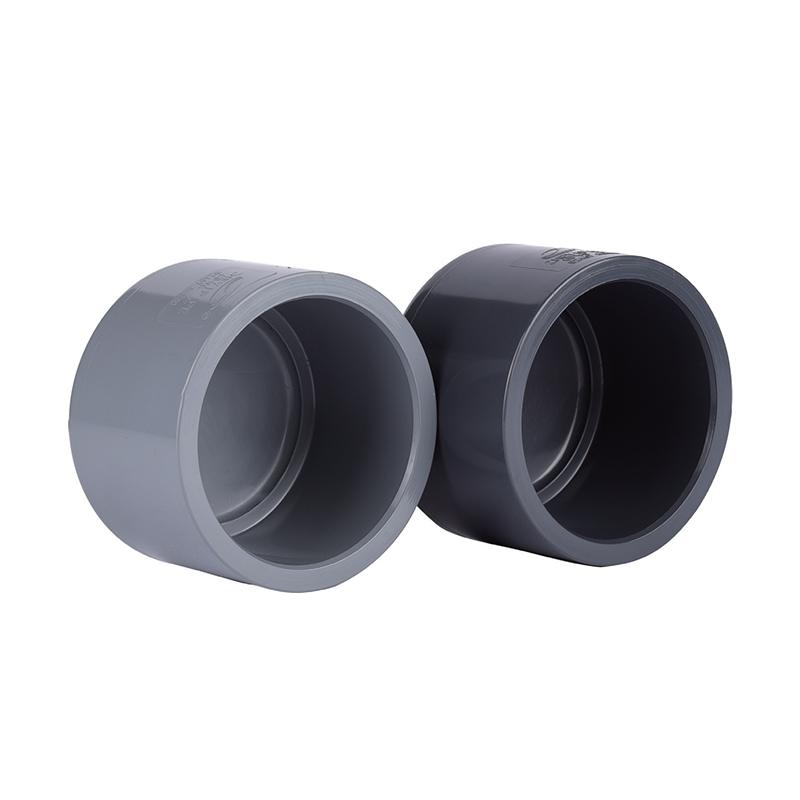

SCH8O/DIN UPVC/CPVC Cap

UPVC caps are lightweight yet sturdy, designed to seal the ends of various pipeline systems, effectively preventing medium leakage and ensuring system stability. With a precision design, UPVC/CPVC caps are easy to install, saving time and costs during construction.

Applicable in industrial pipelines, plumbing systems, and agricultural irrigation, they are available in various sizes to meet different requirements while ensuring sealing performance.

PREV：SCH8O/DIN UPVC/CPVC Male Adapter
NEXT：SCH8O/DIN UPVC/CPVC Reducer Bushing

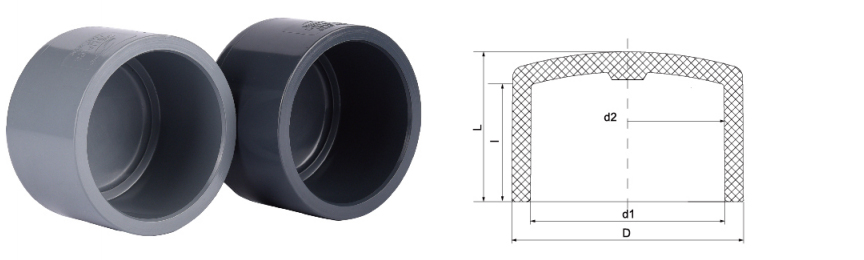

Parameter Application Technical Standards

SiZE/NOM.		dn20	dn25	dn32	dn40	dn50	dn63	dn75	dn90	dn110	dn140	dn160	dn225	dn280	dn315
		(DN15)	(DN20)	(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)	(DN125)	(DN150)	(DN200)	(DN250)	(DN300)
		(1/2")	(3/4")	(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")	(5")	(6")	(8")	(10")	(12")
DIN	d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	140.5	160.5	226.25	281.45	316.85
	d2	20.1	25.1	32.1	40.1	50.1	63.1	75.1	90.1	110.1	140.2	160.2	225.05	280.05	315.05
	D	27	33	40	51	61	75	88	105	127	162	186	255	313	350
	L	24	31	35	42	43	51	57	65	80	96	111	147	180	198
	I	18	24	26	30	32	40	44	51	61	74	84	118	146	165
ANSI	d1	21.51	26.87	33.62	42.4	48.45	60.65	73.39	89.31	114.81	141.81	168.81	219.8	273.87	324.61
	d2	21.25	26.6	33.3	42.06	48.18	60.27	72.9	88.8	114.21	141.11	168	218.8	272.67	323.47
	D	29.5	35.2	43.6	53.2	60	72.8	88	108	132	164	191	246	306	360
	L	30	34.6	38	43	46.7	51.2	60	66.7	78	93	104	135	184.4	208
	I	22.2	25.5	28.6	32.8	36	39	46	50.5	60	70	79.5	104	128	153
JIS	d1	22.4	26.45	32.56	38.63	48.73	56.82	58.63	89.66	114.27	140.22	165.16	216.68	267.21	318.66
	d2	21.75	25.7	31.71	37.67	47.76	55.77	57.67	88.63	113.2	139.01	163.9	214.6	264.88	315.88
	D	29.5	35.2	43.6	53.2	60	72.8	88	108	132	164	191	246	306	360
	L	30	34.6	38	43	46.7	51.2	60	66.7	78	93	104	135	184.4	208
	I	22.2	25.5	28.6	32.8	36	39	46	50.5	60	70	79.5	104	128	153

Company

Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN UPVC/CPVC Cap For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC Cap For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor

News

The Ultimate Guide to UPVC Pipes for Chemical & Lithium In...
Jun 19,2025
UPVC (Unplasticized Polyvinyl Chloride) pipes are widely used in chemical processing, lithium extraction, and high-pressure industrial applications due to their corrosion resistance, durability, and compliance with inter...
READ MORE
High-Performance UPVC Pipes for Harsh Industrial Environme...
Jun 12,2025
UPVC pipes are widely used in industries requiring exceptional chemical resistance and durability. This article explores key features of high chemical resistance UPVC pipes for lithium industry, corrosion-proof UPVC pipi...
READ MORE
Chemical/Lithium UPVC/CPVC Fittings: Essential Components ...
Jun 05,2025
CPVC Piping for Lithium Battery Production: Ensuring Safety and Efficiency The booming lithium battery industry demands high-performance piping systems that can withstand aggressive chemicals and high temperatures. CPVC ...
READ MORE

Message Feedback

SCH8O/DIN UPVC/CPVC Cap Industry knowledge

The difference between UPVC and CPVC pipe caps: comparison of material properties, temperature resistance and applicable scenarios

UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) pipe caps are widely used in industrial piping systems, but due to differences in material properties, their applicable scenarios are also different. The following are the key differences between the two, and are analyzed in combination with the application needs of different industries:

1. Material properties
UPVC: strong rigidity and good corrosion resistance, but low temperature resistance (usually ≤60℃), suitable for normal temperature or low temperature environments.
CPVC: After chlorination treatment, the temperature resistance is significantly improved (can withstand ≤93℃ or even higher temperatures), while maintaining excellent chemical corrosion resistance, suitable for high temperature medium transportation.

2. Temperature resistance comparison
UPVC: Suitable for normal temperature environments such as drinking water (Drinking Water), industrial water treatment (Industrial Water Treatment), such as municipal water supply and cooling water systems.
CPVC: In ultrapure water systems in industries such as photovoltaics and electronic semiconductors, it can withstand high-temperature cleaning processes; in metallurgy and industrial wastewater treatment, it can handle high-temperature corrosive media.

3. Applicable scenario analysis
Safe Drinking Water: UPVC pipe caps are widely used in drinking water pipe systems because they are non-toxic and meet food-grade standards; while CPVC has more advantages when high-temperature disinfection (such as hospital water supply) is required.
Nuclear Power: CPVC's high temperature resistance and radiation resistance make it suitable for auxiliary pipe systems in nuclear power plants, while UPVC is mostly used in conventional water circulation systems.
Medicine: CPVC can be used for high-temperature sterilization process pipes, while UPVC is suitable for normal temperature liquid transportation.
Photovoltaic: In the manufacture of solar cells, CPVC pipe caps can withstand high-temperature cleaning of high-purity chemicals, while UPVC is used for general drainage.

4. Industry selection recommendations
UPVC is preferred: normal temperature drinking water, general industrial water treatment, low-corrosive drainage systems in the electronic semiconductor industry.
CPVC is preferred: high-temperature chemical media (such as metallurgical pickling), high-temperature sterilization of medicines, photovoltaic ultrapure water systems, nuclear power radiation-resistant environments, etc.
