Custom SCH8O/DIN Electric Butterfly Valve For Food Industry/Automotive/Electronic

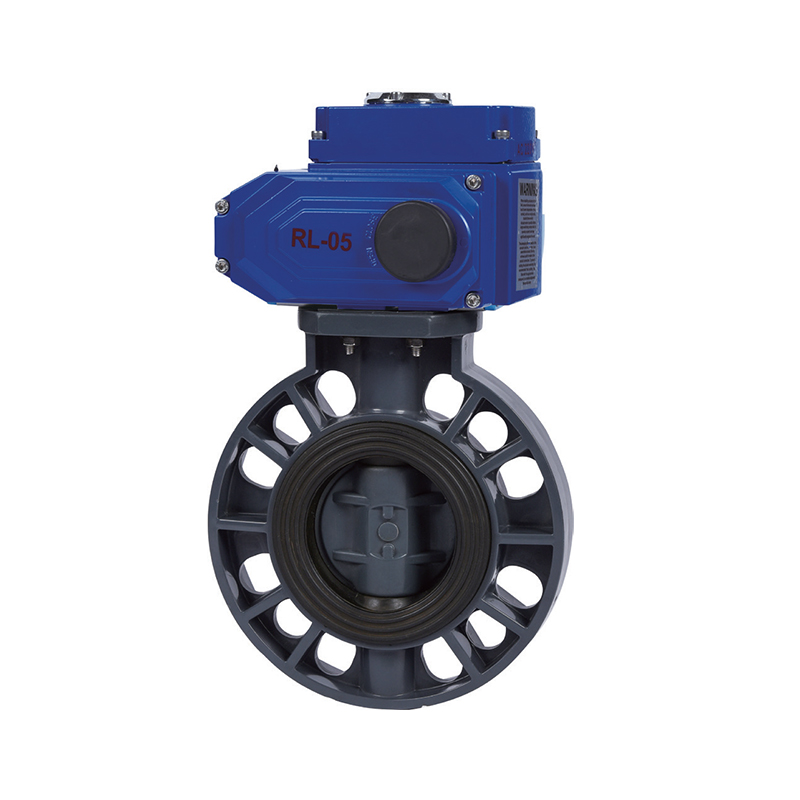

SCH8O/DIN Electric Butterfly Valve

SCH8O/DIN Electric Butterfly Valve

The electric butterfly valve has a simple structure, small size, lightweight design, and low material consumption. It features a small driving torque, making it easy and quick to operate. The valve offers flow regulation capabilities and sealing performance, achieving good sealing under low-pressure conditions. Based on the connection method, electric butterfly valves can be classified as flange-type or wafer-type; by driving method, they can be manual, pneumatic, or electric; by structure, they can be eccentric disc type, vertical plate type, inclined plate type, or lever type; and by sealing type, they can be soft-seal or hard-seal.

Contact Us
  • SCH8O/DIN Electric Butterfly Valve
PREV：SCH8O/DIN Pneumatic UPVC Double Driven Diaphragm Valve
NEXT：SCH8O/DIN Pneumatic Butterfly Valve
Parameter Application Technical Standards

  • (1) Material: UPVC, CPVC
    (2) Size: 2"-12", DN50-DN300, dn63-dn315
    (3) Standards: ANSI, DIN
    (4) Connection: flange
    (5) Work pressure: 150PSI, 1.0MPa
    (6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
    (7) Body color: UPVC (dark gray), CPVC (light gray)

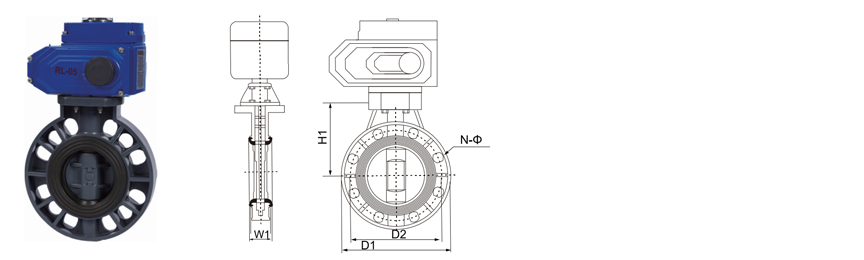

    SIZE/NOM.

    dn63

    dn75

    dn90

    dn110

    dn140

    dn160

    dh225

    dn280

    dn315

    (DN50)

    (DN65)

    (DN80)

    (DN100)

    (DN125)

    (DN150)

    (DN200)

    (DN250)

    (DN300)

    (2")

    (2-1/2")

    (3")

    (4")

    (5")

    (6")

    (8")

    (10")

    (12")

    D1

    160

    180

    196

    228

    258

    287

    344

    411

    490

    D2

    125

    145

    160

    180

    210

    240

    295

    350

    400

    N-Φ

    4-Φ18

    4-Φ18

    8-Φ18

    8-Φ18

    8-Φ18

    8-Φ22

    8-Φ22

    8-Φ22

    12-Φ22

    H1

    100

    110

    132

    155

    167

    180

    225

    260

    280

    W1

    43

    46

    49

    54

    64

    70

    88

    98

    108

    Torque (N ·M)

    10

    10

    15

    22

    40

    45

    65

    -

    		 -

    Electric actuator specifications

    Ball valve

    Model

    Maximum output torque

    Action time 90°

    Output shaft

    Motor

    Rated current

    N·M

    Special

    Standard

    mm

    W

    AC

    220V/A

    AC

    380V/A

    DC

    24V/A

    dn63-dn75

    RL003

    30

    5-10

    15

    11*11

    AC20

    DC2

    0.1

    0.05

    0.2

    dn90-dn110

    RL005

    50

    5-15

    30

    14*14

    15

    0.15

    0.1

    2

    dn140

    RL010

    100

    15/30/60

    30

    17*17

    31

    0.28

    0.19

    2.5

    dn160

    RL015

    150

    15/30/60

    40

    17*17

    50

    0.5

    0.22

    5

    dn225

    RL020

    200

    5/15/90

    40

    22*22

    71

    0.6

    0.25

    8.5

    dn280

    RL050

    400

    5/15/90

    40

    22*22

    118

    1

    0.5

    8.5

    dn315

    RL100

    1000

    5/15/40

    40

    27*27

    118

    1

    0.5

    9
Recommended Products
Company
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN Electric Butterfly Valve For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN Electric Butterfly Valve For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • ISO 45001:2018
  • ISO:45001-2018 En
  • national high-tech enterprise
  • Certificate
  • Certificate
News
Message Feedback

SCH8O/DIN Electric Butterfly Valve Industry knowledge

Common fault diagnosis and maintenance of electric butterfly valves: 5 key points to extend service life

Electric butterfly valves are widely used in industries such as safe drinking water, metallurgy, photovoltaics, nuclear power, electronic semiconductors, medicine, industrial water treatment, and industrial wastewater. Different working conditions have extremely high requirements for the reliability of valves, and correct maintenance can greatly extend their service life. The following are 5 key maintenance points:

1. Sealing inspection: prevent medium leakage
Problem manifestation: The valve is not closed tightly, leaking inside or outside.

Industry impact:
Safe drinking water & pharmaceutical industry: Leakage will cause water pollution and affect health and safety.
Nuclear power & electronic semiconductors: Leakage of high-purity media may cause system failure.
Maintenance suggestions: Regularly check the valve seat and valve plate sealing surface, and replace worn rubber or PTFE seals.

2. Motor and actuator maintenance: ensure stable drive
Problem manifestation: valve movement is slow, stuck or cannot be opened and closed.

Industry impact:
Metallurgy & Industrial Wastewater: Highly corrosive media can easily cause the motor to get damp or the circuit to be damaged.
Photovoltaic & Electronic Semiconductor: Precision control requires high precision, and motor failure may affect production continuity.
Maintenance suggestions: Regularly lubricate transmission parts, check motor insulation, and avoid long-term operation in a humid environment.

3. Signal feedback calibration: ensure control accuracy
Problem manifestation: Valve opening is inconsistent with control system feedback.

Industry impact:
Industrial water treatment & nuclear power: Flow control deviation may affect process stability.
Medicine & Electronic Semiconductor: Minor errors can cause product quality problems.
Maintenance suggestions: Regularly calibrate position sensors (such as potentiometers or encoders) and check whether the signal line is loose.

4. Corrosion protection and material adaptation
Problem manifestation: Rust and scaling of valve body or internal components.

Industry impact:
Industrial wastewater & Metallurgy: Acidic or high-salt media accelerate metal corrosion.
Photovoltaic & Semiconductor: Ultrapure water environment requires stainless steel or special coating valves.
Maintenance recommendations: Select valve body material (such as CF8M stainless steel, fluorine-lined butterfly valve) according to the characteristics of the medium, and clean the deposits regularly.
