Custom SCH8O/DIN Pneumatic UPVC Double Driven Diaphragm Valve For Food Industry/Automotive/Electronic

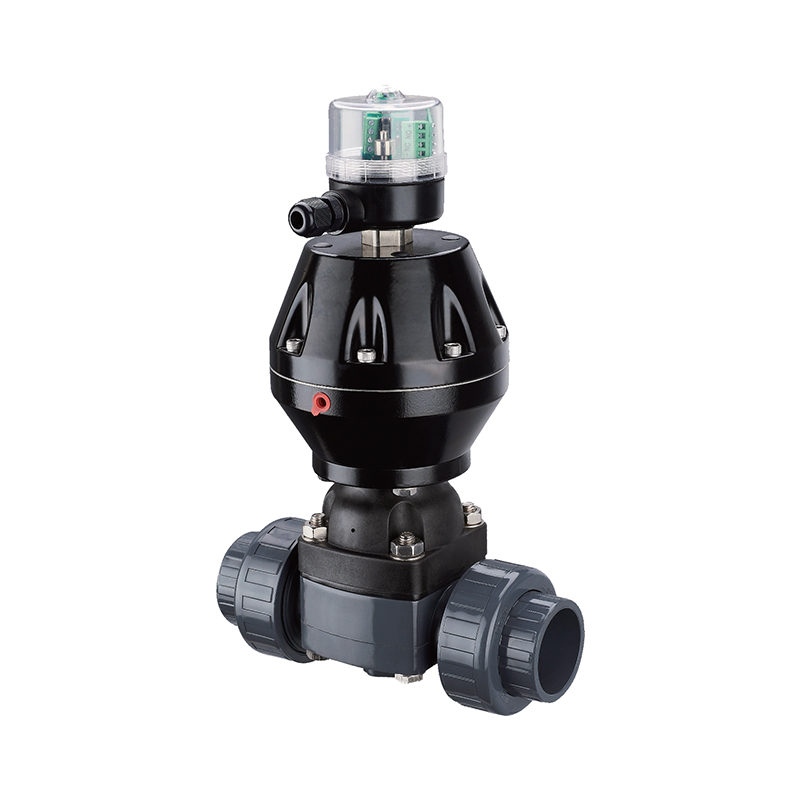

SCH8O/DIN Pneumatic UPVC Double Driven Diaphragm Valve

SCH8O/DIN Pneumatic UPVC Double Driven Diaphragm Valve

The pneumatic UPVC double driven diaphragm valve is made from UPVC material, offering corrosion resistance and lightweight characteristics. With a double driven design operated pneumatically, the valve is highly flexible and reliable. It operates based on pneumatic force and the diaphragm's lifting motion. By controlling the air source to change the pressure in the air chamber, the diaphragm moves up and down, enabling valve opening and closing. It is commonly used in applications requiring corrosion resistance and fluid control, such as in chemical, pharmaceutical, and food processing industries. The valve features a simple structure, low maintenance costs, and extended maintenance intervals. Its precise flow control makes it suitable for various fluid media.

Contact Us
  • SCH8O/DIN Pneumatic UPVC Double Driven Diaphragm Valve
PREV：SCH8O/DIN Pneumatic UPVC Flange Diaphragm Valve
NEXT：SCH8O/DIN Electric Butterfly Valve
Parameter Application Technical Standards

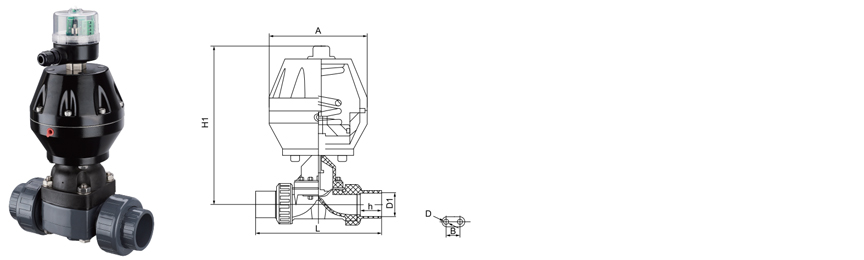

  • The feature of the pneumatic UPVC dual-route diaphragm valve is that the diaphragm separates the inner cavity of the lower valve body from the inner cavity of the upper valve cover, so that the valve stem, valve disc, and other parts located above the diaphragm are not corroded by the medium, and the packing seal structure is omitted, and No medium leakage occurs. The inner cavity partition is a diaphragm made of rubber or plastic with a soft seal, which has good sealing performance.
