Custom SCH8O/DIN UPVC/CPVC Ball Check Valve For Food Industry/Automotive/Electronic

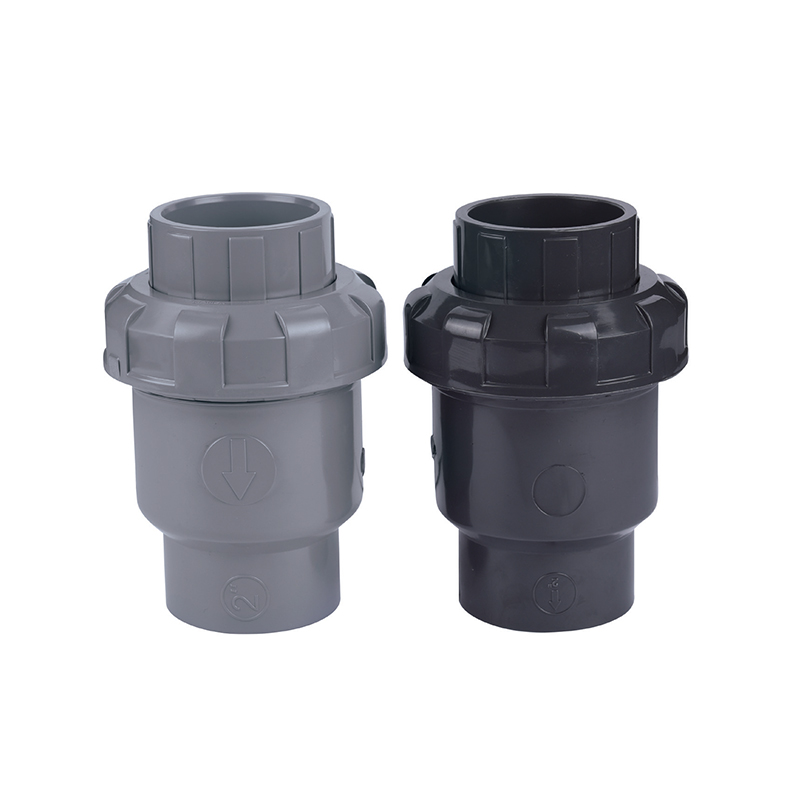

SCH8O/DIN UPVC/CPVC Ball Check Valve

SCH8O/DIN UPVC/CPVC Ball Check Valve

The UPVC/CPVC ball check valve is a high-efficiency and reliable fluid control device designed for various industrial and construction applications. Its ball-shaped design allows the valve to open quickly during fluid flow and automatically close during reverse flow, effectively preventing backflow and fluid mixing to ensure the safety and efficiency of the system.

The valve is widely used in water treatment, chemical processing, pharmaceuticals, and food processing industries, especially in scenarios requiring high fluid purity. Its simple structure and convenient installation make it a modern industrial solution for high fluid control requirements.

Contact Us
  • SCH8O/DIN UPVC/CPVC Ball Check Valve
PREV：SCH8O/DIN UPVC/CPVC Ball Bottom Valve
NEXT：SCH8O/DIN UPVC/CPVC Gear Butterfly Valve

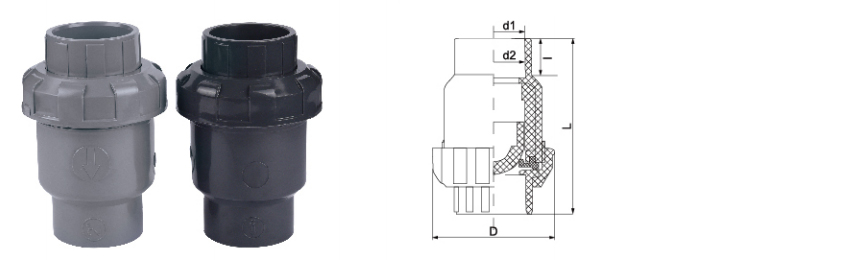

Parameter Application Technical Standards

  •

    SIZE/NOM.

    dn20

    dn25

    dn32

    dn40

    dn50

    dn63

    dn75

    dn90

    dn110

    (DN15)

    (DN20)(

    DN25)

    (DN32)

    (DN40)

    (DN50)

    (DN65)

    (DN80)

    (DN100)

    (1/2")

    (3/4")

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    (2-1/2")

    (3")

    (4")

    DIN

    d1

    20.3

    25.3

    32.3

    40.3

    50.3

    63.3

    75.3

    90.3

    110.4

    d2

    20.1

    25.1

    32.1

    40.1

    50.1

    63.1

    75.1

    90.1

    110.1

    ANSI

    d1

    21.51

    26.87

    33.62

    42.6

    48.54

    60.65

    73.39

    89.31

    114.8

    d2

    21.25

    26.6

    33.3

    42.06

    48.18

    60.27

    72.9

    88.8

    114.2

    JIS

    d1

    22.4

    26.45

    32.56

    38.63

    48.73

    56.82

    58.63

    89.66

    114.27

    d2

    21.75

    25.7

    31.71

    37.67

    47.76

    55.77

    57.67

    88.63

    113.2

    D

    53

    63

    73

    85

    97

    118

    134

    158

    202

    L

    90

    106

    124

    139

    151

    169

    230

    262

    346

    I

    16

    19

    22

    26

    31

    38

    44

    51

    61
Recommended Products
Company
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN UPVC/CPVC Ball Check Valve For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC Ball Check Valve For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • ISO 45001:2018
  • ISO:45001-2018 En
  • national high-tech enterprise
  • Certificate
  • Certificate
News
Message Feedback

SCH8O/DIN UPVC/CPVC Ball Check Valve Industry knowledge

How to correctly select UPVC/CPVC ball check valve? Key factors and industry application guide

UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) ball check valves are widely used in many industries due to their corrosion resistance, lightweight and high cost performance. Correct selection requires comprehensive consideration of media characteristics, working conditions and industry-specific needs. The following are key selection points and typical industry application analysis:

1. Media compatibility
UPVC: Suitable for weak acid, weak alkali and clear water media at room temperature (≤60°C), such as drinking water, industrial water treatment, etc.
CPVC: Higher temperature resistance (≤90°C), can withstand strong acids, strong alkalis and some organic solvents, suitable for chemical liquid transportation in the electronic semiconductor industry or etching wastewater treatment in the photovoltaic industry.

2. Pressure and flow requirements
Low-pressure systems (such as pure water delivery in the medicine industry) can choose standard pressure levels (PN10~16).
High-pressure or pulse conditions (such as cooling circulation systems in metallurgy) need to verify the pressure bearing capacity of the valve body, and choose a reinforced structure if necessary.

3. Special industry requirements
Nuclear power plants: must comply with radiation-resistant material certification and ensure zero leakage to prevent pollution.
Industrial wastewater: When containing granular media, it is recommended to use a ball check valve with an anti-blocking design to avoid the valve ball from getting stuck.
Safe drinking water: The valve body material must pass NSF/ANSI 61 and other drinking water safety certifications.

4. Installation environment
For space-constrained scenarios (such as electronic semiconductor factory service pipelines), compact flanges or threaded connection styles should be selected.
Corrosive environments (such as acid wastewater pipelines in the photovoltaic industry) require additional checks on the tolerance of sealing materials (such as EPDM, FPM).

5. Maintenance and lifespan
For systems that are frequently started and stopped (such as CIP cleaning pipelines in the pharmaceutical industry), it is recommended to choose wear-resistant valve balls (such as ceramic coatings) to reduce the frequency of maintenance.
