Custom SCH8O/DIN UPVC/CPVC Ball Bottom Valve For Food Industry/Automotive/Electronic

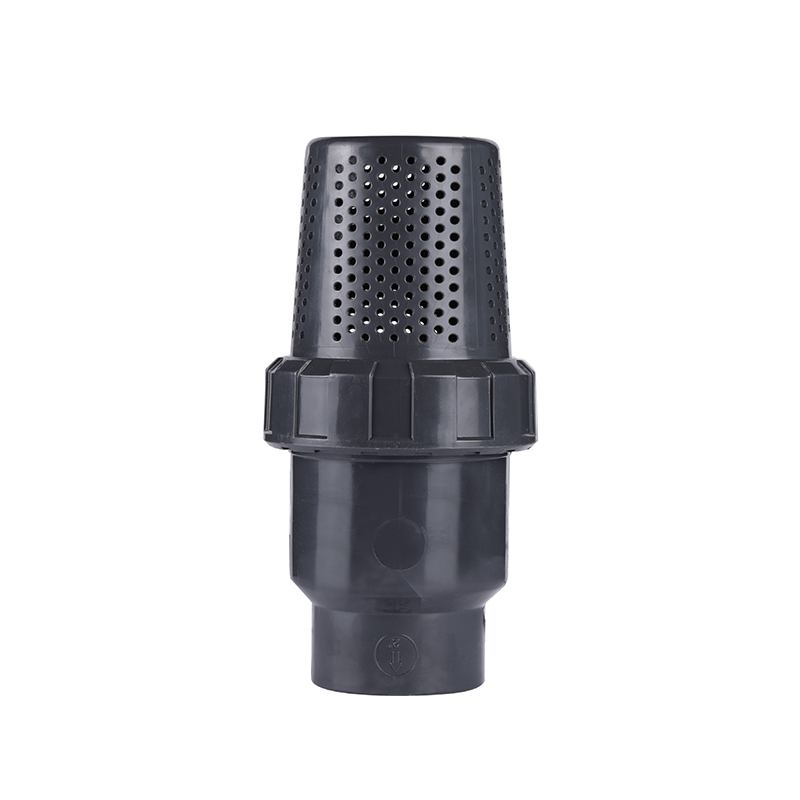

SCH8O/DIN UPVC/CPVC Ball Bottom Valve

SCH8O/DIN UPVC/CPVC Ball Bottom Valve

The UPVC/CPVC ball bottom valve is a high-efficiency fluid control device designed for pipeline systems in industrial and construction fields. Its design ensures minimal obstruction to fluid flow during opening and closing, reducing pressure loss and achieving precise flow control in an instant.

The unique ball core design allows smooth and easy operation, significantly enhancing efficiency. Its resistance to high temperatures and pressures makes it suitable for applications such as water treatment, chemical processing, and wastewater treatment.

Contact Us

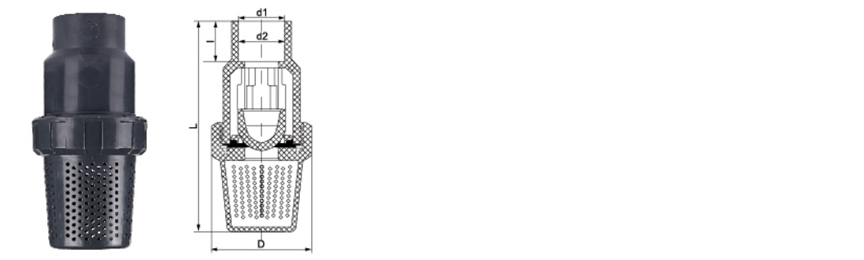

Parameter Application Technical Standards
  • SIZE/NOM.

    dn20

    dn25

    dn32

    dn40

    dn50

    dn63

    dn75

    dn90

    dn110

    (DN15)

    (DN20)

    (DN25)

    (DN32)

    (DN40)

    (DN50)

    (DN65)

    (DN80)

    (DN100 )

    (1/2")

    (3/4")

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    (2-1/2")

    (3")

    (4")

    DIN

    d1

    20.3

    25.3

    32.3

    40.3

    50.3

    63.3

    75.3

    90.3

    110.4

    d2

    20.1

    25.1

    32.1

    40.1

    50.1

    63.1

    75.1

    90.1

    110.1

    ANSI

    d1

    21.51

    26.87

    33.62

    42.6

    48.54

    60.65

    73.39

    89.31

    114.8

    d2

    21.25

    26.6

    33.3

    42.06

    48.18

    60.27

    72.9

    88.8

    114.2

    JIS

    d1

    22.4

    26.45

    32.56

    38.63

    48.73

    56.82

    58.63

    89.66

    114.27

    d2

    21.75

    25.7

    31.71

    37.67

    47.76

    55.77

    57.67

    88.63

    113.2

    D

    55

    63

    73

    85

    97

    118

    134

    158

    202

    L

    120

    146

    174

    190

    206

    235

    302

    350

    428

    I

    22

    22

    22

    26

    31

    38

    44

    51

    61

Company
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN UPVC/CPVC Ball Bottom Valve For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC Ball Bottom Valve For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • ISO 45001:2018
News
Message Feedback

SCH8O/DIN UPVC/CPVC Ball Bottom Valve Industry knowledge

The key role and installation points of ball-bottom valves in chemical fluid systems

In chemical fluid systems, UPVC/CPVC ball-bottom valves have become the preferred valve type in many key industries due to their excellent corrosion resistance, lightweight design and reliable sealing performance. The following are its core roles and installation points in various industries:

1. The key role of ball-bottom valves
Safe sealing and fluid control
The ball-bottom valve adopts a spherical closing structure, which can achieve rapid opening and closing, effectively prevent medium leakage, and is suitable for high-purity or hazardous fluids (such as acids, alkalis, and organic solvents).
In the electronic semiconductor and photovoltaic industries, valves need to avoid metal ion contamination. UPVC/CPVC materials are perfectly suitable for ultrapure water, etching solutions and other media.

Corrosion resistance and long life
CPVC is resistant to high temperatures (up to 90°C or above), suitable for cooling water systems in nuclear power plants or pickling processes in the metallurgy industry.
UPVC is resistant to corrosive substances such as chlorine and salt in industrial wastewater and drinking water treatment, extending the life of the equipment.

Sanitary Applications
In the fields of medicine and safe drinking water, the inner wall of the ball-bottom valve is smooth to avoid bacterial growth and meet FDA or NSF standards.

Energy saving and environmental protection
The lightweight structure reduces the pipeline load, reduces energy consumption in the industrial water treatment system, and supports environmental compliance.

2. Installation points
Material adaptability check
Confirm the compatibility of the medium with UPVC/CPVC (such as concentrated sulfuric acid and benzene solvents may require special materials).
In the hydrofluoric acid (HF) environment of the photovoltaic industry, CPVC reinforced valve body must be selected.

Pipeline support and alignment
Plastic valves are less rigid than metal valves, and brackets must be added during installation to avoid deformation due to pipeline stress, especially in the high-pressure pipelines of nuclear power plants.

Sealing and fastening
When flange or threaded connection is used, the bolts need to be tightened evenly to prevent local stress cracking (such as PVDF piping system in semiconductor industry).
It is recommended to use EPDM or PTFE materials for sealing gaskets to adapt to high temperature conditions (such as steam pipelines in metallurgical industry).

Operating environment considerations
When installed outdoors (such as water treatment plants), it is necessary to install UV protection covers to prevent UPVC aging.
In the clean workshop of the pharmaceutical industry, the valve needs to be flushed and passivated after installation.

Maintenance and testing
Regularly check the wear of the valve ball and valve seat, especially in the medium containing particles in industrial wastewater.
When the system is put into use for the first time, it is necessary to slowly increase the pressure to test to avoid the impact of water hammer effect on the plastic valve body.

3. Industry application summary
Safety and high purity: semiconductors, photovoltaics, and medicine rely on its pollution-free characteristics.
High temperature and corrosion: Nuclear power and metallurgy give priority to the temperature-resistant version of CPVC.
Environmental compliance: Replace metal valves in drinking water and industrial wastewater treatment to reduce heavy metal risks.
