{config.cms_name} Home / Products / UPVC/CPVC Fittings / SCH8O/DIN UPVC/CPVC 90° Curved Elbow
Zheyi Pipeline (Wuhan) Co., Ltd.
Custom SCH8O/DIN UPVC/CPVC 90° Curved Elbow For Food Industry/Automotive/Electronic

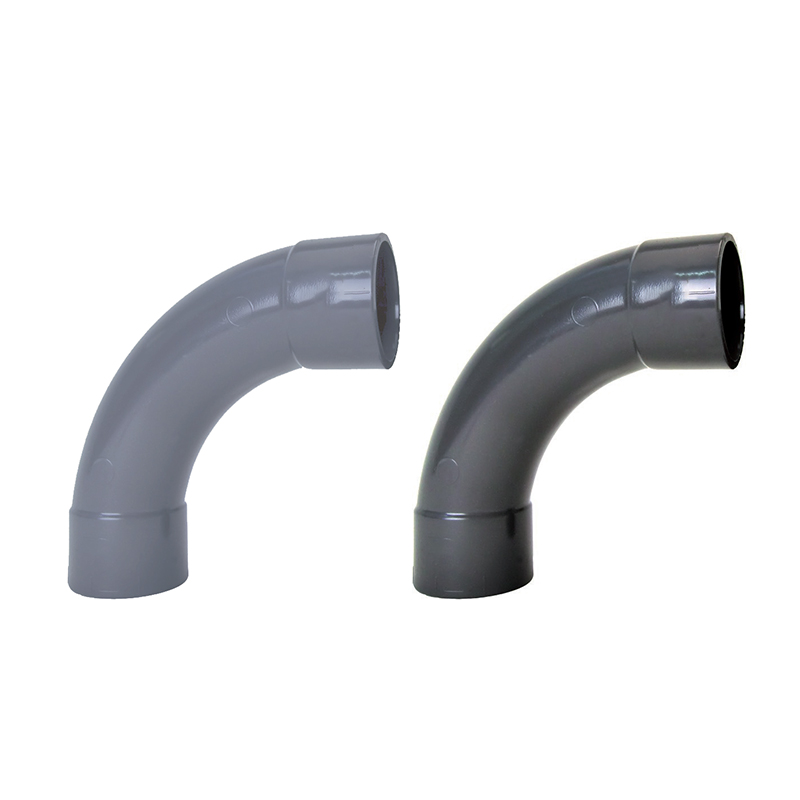

SCH8O/DIN UPVC/CPVC 90° Curved Elbow

SCH8O/DIN UPVC/CPVC 90° Curved Elbow

The UPVC/CPVC 90° elbow is heat-resistant and can withstand high-temperature fluids, ensuring system safety. Its smooth inner wall design reduces fluid resistance, enhances flow efficiency, and lowers energy consumption.

Designed for easy installation, the 90° elbow quickly connects to various piping systems, saving time and costs. Its durability and anti-aging properties ensure long-term stability and safety, significantly reducing maintenance and replacement frequency.

Contact Us
  • SCH8O/DIN UPVC/CPVC 90° Curved Elbow
PREV：SCH8O/DIN UPVC/CPVC Flowmeter
NEXT：SCH8O/DIN UPVC/CPVC Reducer Coupler

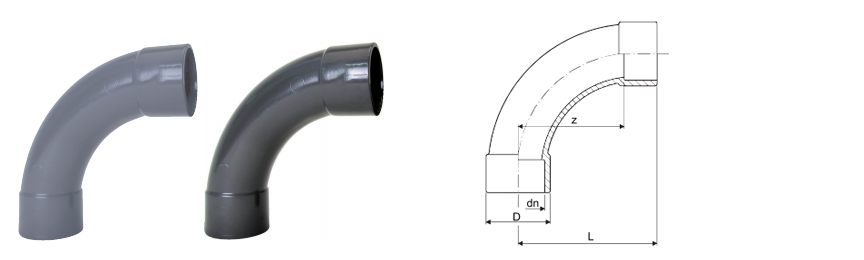

Parameter Application Technical Standards

  • dn

    DN

    z

    (mm)

    D

    (mm)

    L

    (nm)

    20

    15

    40

    27

    56

    25

    20

    50

    33

    69

    32

    25

    64

    38

    86

    40

    32

    80

    47

    106

    50

    40

    100

    61

    131

    63

    50

    26

    76

    164

    * 75

    65

     -

    -

    -

    * 90

    80

     -

     -

     -

    * 110

    100

     -

     -

    		  -

    Note: * is hand-made.

Recommended Products
Company
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN UPVC/CPVC 90° Curved Elbow For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC 90° Curved Elbow For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • ISO 45001:2018
  • ISO:45001-2018 En
  • national high-tech enterprise
  • Certificate
  • Certificate
News
Message Feedback

SCH8O/DIN UPVC/CPVC 90° Curved Elbow Industry knowledge

Performance comparison of UPVC and CPVC 90° elbows: corrosion resistance, temperature tolerance and applicable scenario analysis

In industrial piping systems, UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) 90° elbows are widely used due to their excellent corrosion resistance and lightweight characteristics, but the performance difference between the two directly affects their applicable scenarios. The following is a key comparison and industry application analysis:

1. Corrosion resistance comparison
UPVC: It has good corrosion resistance to most inorganic acids, alkalis, and salt solutions, but is easily corroded by some organic solvents (such as ketones and aromatic hydrocarbons). Suitable for neutral or weakly corrosive media.
CPVC: Based on UPVC, it is chlorinated and has stronger chemical resistance. It can withstand higher concentrations of acids (such as hydrochloric acid and sulfuric acid) and oxidants, and is suitable for highly corrosive environments.

Industry application adaptability:
Industrial wastewater treatment: CPVC is more suitable for wastewater pipes containing strong acids/alkalis (such as electroplating plant wastewater), while UPVC can be used for general industrial drainage.
Electronic semiconductors: CPVC resists high-purity chemicals (such as hydrofluoric acid, etching solution), and is suitable for ultrapure water (UPW) and chemical delivery systems.
Photovoltaic industry: UPVC is used for cooling water or low-corrosive fluids, and CPVC is used for acid cleaning process pipelines.

2. Temperature tolerance comparison
UPVC: The upper limit of long-term use temperature is about 60°C, and the short-term tolerance can reach 80°C. It is easy to soften and deform at high temperatures.
CPVC: Long-term temperature resistance reaches 90~110°C, and can withstand 120°C in a short time, which is suitable for high-temperature fluid transportation.

Industry application adaptability:
Nuclear power plant: CPVC is used for medium and low temperature cooling water systems (such as auxiliary pipelines), and UPVC is limited to normal temperature water circulation.
Metallurgical industry: CPVC is suitable for high-temperature circulating water or steam condensate, and UPVC is used for normal temperature dust removal wastewater.
Pharmaceutical industry: CPVC meets high-temperature sterilization (such as pure steam pipelines), and UPVC is used for normal temperature purified water transportation.

3. Comprehensive recommendations for applicable scenarios
Drinking Water: UPVC is the mainstream choice (low cost, no risk of plasticizer migration), CPVC can be used in high temperature areas (such as solar water heating systems).
Industrial water treatment: UPVC is used for pretreatment or neutral water quality, CPVC is used for RO concentrated water and chemical agent injection pipelines.
Photovoltaics and semiconductors: CPVC is more reliable in wet etching and CMP processes, and UPVC is used for ordinary cooling water circuits.
