Custom SCH8O/DIN UPVC/CPVC Flange Gasket For Food Industry/Automotive/Electronic
SCH8O/DIN UPVC/CPVC Flange Gasket

SCH8O/DIN UPVC/CPVC Flange Gasket

UPVC/CPVC flange gaskets are precisely designed to maintain sealing performance under high pressure and temperature fluctuations, effectively preventing medium leakage. Their lightweight nature reduces installation and maintenance difficulty, while the environmentally friendly, non-toxic material aligns with modern green building standards.

These gaskets are corrosion-resistant, heat-resistant, and chemically stable, making them ideal for industrial and residential applications such as water supply, chemical processing, and food production pipelines.

Contact Us
  • SCH8O/DIN UPVC/CPVC Flange Gasket
PREV：SCH8O/DIN UPVC/CPVC Reducer Bushing
NEXT：SCH8O/DIN UPVC/CPVC Blind Flange

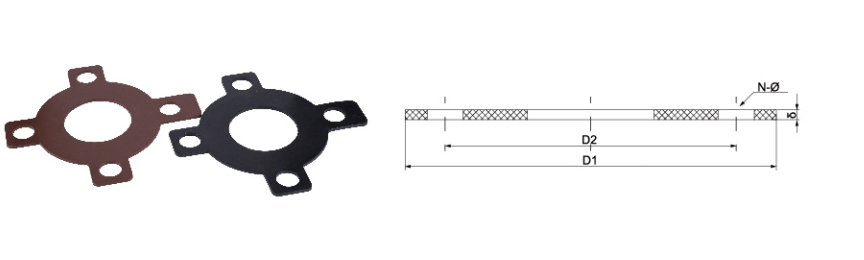

Parameter Application Technical Standards

  • SIZE/NOM

    dn20

    dn25

    dn32

    dn40

    dn50

    dn63

    dn75

    dn90

    dn110

    dn140

    dn160

    dn225

    dn280

    dn315

    (DN15)

    (DN20)

    (DN25)

    (DN32)

    (DN40)

    DN50)

    (DN65)

    (DN80)

    (DN100)

    (DN125)

    (DN150)

    (DN200)

    (DN250)

    (DN300)

    (1/2")

    (3/4")

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    (2-1/2")

    (3")

    (4")

    (5")

    (6")

    (8")

    (10")

    (12")

    DIN

    D1

    95

    105

    115

    140

    150

    165

    185

    200

    220

    250

    285

    340

    395

    445

    D2

    65

    75

    85

    100

    110

    125

    145

    160

    180

    210

    240

    295

    350

    400

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ14

    4-Φ14

    4-Φ14

    4-Φ18

    4-Φ18

    4-Φ18

    4-Φ18

    8-Φ18

    8-Φ18

    8-Φ18

    8-Φ22

    8-Φ22

    12-Φ22

    12-Φ22

    ANSI

    D1

    89

    98

    108

    117

    128

    155

    178

    192

    229

    254

    284

    343

    406

    481

    D2

    61

    70

    79

    89

    98

    121

    140

    152

    191

    216

    241

    298

    362

    432

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ22

    8-Φ22

    8-Φ22

    12-Φ24

    12-Φ24

    JIS

    D3

    70

    75

    90

    100

    105

    120

    140

    150

    175

    210

    240

    290

    355

    400

    D2

    1

    35

    42.5

    48.5

    61

    73

    90

    105

    132

    158

    186

    238

    289

    341

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ15

    4-Φ15

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ19

    8-Φ19

    8-Φ23

    8-Φ23

    12-Φ23

    12-Φ25

    16-Φ25
