SCH8O/DIN UPVC/CPVC Saddie Joint

SCH8O/DIN UPVC/CPVC Saddie Joint

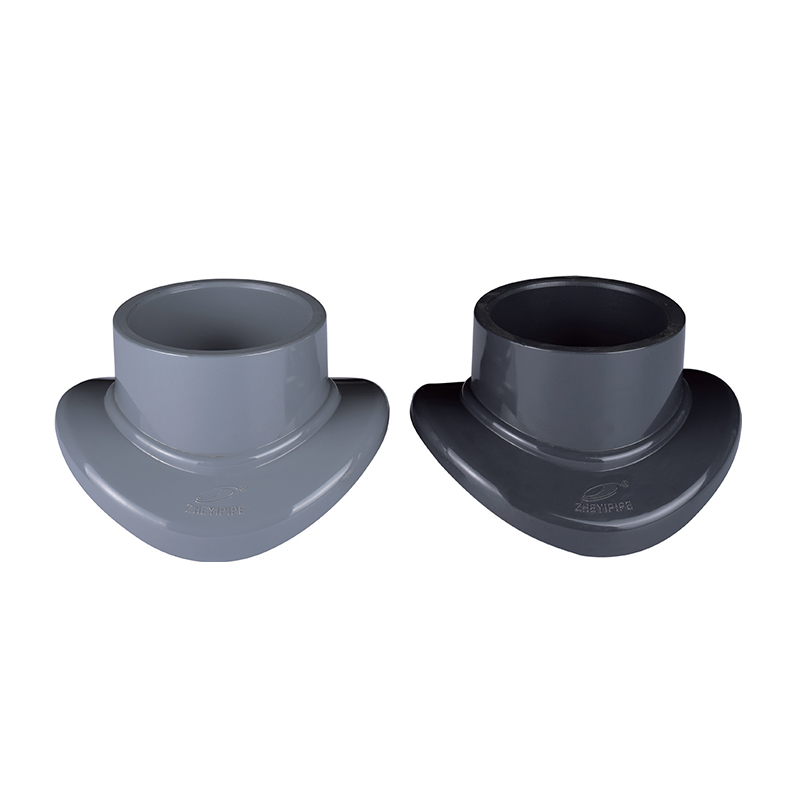

The saddle joint is renowned for its unique saddle-shaped design, allowing branch connections without cutting or damaging the main pipeline. This simplifies installation and reduces construction difficulty and costs while providing sealing performance to prevent leakage.

It is suitable for hot and cold water supply systems, fire protection systems, and industries such as chemicals and pharmaceuticals. UPVC/CPVC saddle joints provide reliable connection solutions for diverse applications.

Contact Us
  • SCH8O/DIN UPVC/CPVC Saddie Joint
PREV：SCH8O/DIN UPVC/CPVC Pipe Support
NEXT：SCH8O/DIN UPVC/CPVC Ⅱ Union

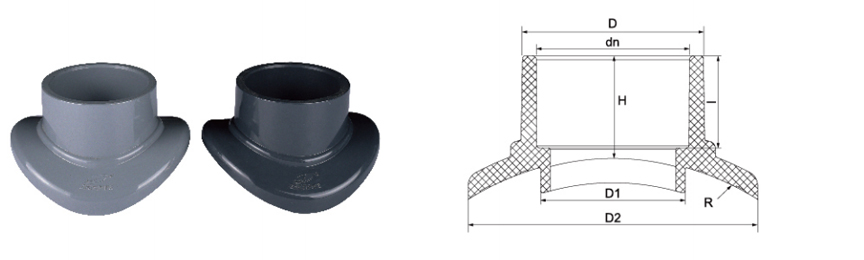

Parameter Application Technical Standards

  • Nominal size Φ

    ΦD

    ΦD1

    ΦD2

    R

    H

     I

    Φ75×32

    40

    30

    60

    37.5

    26

    22

    Φ90×32

    40

    30

    65

    45

    26

    22

    Φ110×32

    40

    30

    65

    55

    26

    22

    Φ140×32

    40

    30

    70

    70

    26

    22

    Φ140×50

    60

    55

    100

    70

    36

    31

    Φ140×63

    75

    60

    100

    70

    40

    38

    Φ160×32

    40

    30

    70

    80

    26

    22

    Φ160×50

    60

    60

    100

    80

    36

    31

    Φ160×63

    75

    60

    120

    80

    40

    38

    Φ160×90

    105

    90

    150

    80

    56

    51

    Φ200×90

    104

    90

    152

    100

    56

    51

    Φ225×32

    40

    30

    60

    112.5

    26

    22

    Φ225×50

    60

    55

    100

    112.5

    36

    31

    Φ225×63

    75

    60

    120

    112.5

    42

    38

    Φ225×75

    88

    70

    120

    112.5

    50

    44

    Φ225×90

    105

    90

    155

    112.5

    56

    51

    Φ250×32

    40

    30

    70

    125

    26

    22

    Φ250×63

    75

    60

    120

    125

    42

    38

    Φ280×32

    40

    30

    70

    140

    26

    22

    Φ280×50

    60

    55

    100

    140

    36

    31

    Φ280×63

    75

    60

    120

    140

    42

    38

    Φ280×75

    88

    70

    120

    140

    50

    44

    Φ315×32

    40

    30

    70

    157.5

    26

    22

    Φ315×50

    60

    55

    100

    157.5

    36

    31

    Φ315×63

    75

    60

    120

    157.5

    42

    38

    Φ315×75

    88

    70

    118

    157.5

    50

    44

    Φ355×63

    75

    60

    120

    177.5

    42

    38
