Custom SCH8O/DIN UPVC/CPVC Basket Filter For Food Industry/Automotive/Electronic

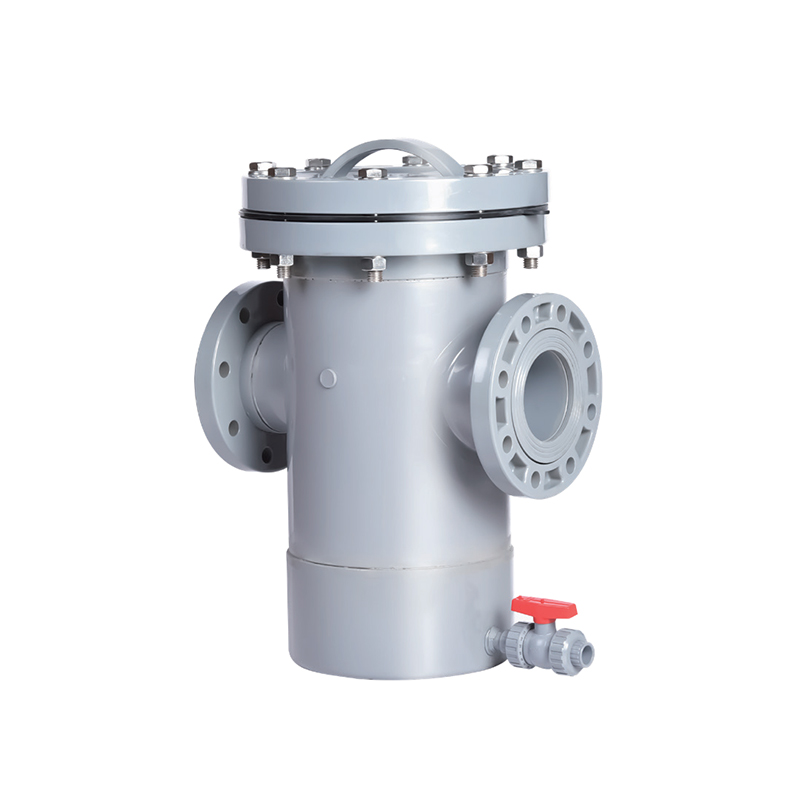

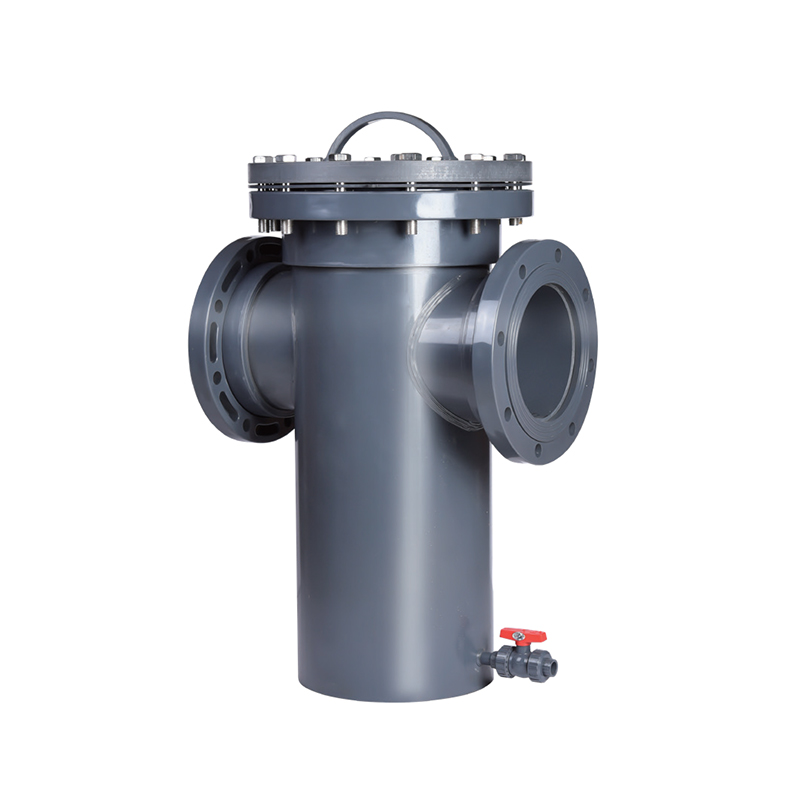

SCH8O/DIN UPVC/CPVC Basket Filter

SCH8O/DIN UPVC/CPVC Basket Filter

The UPVC/CPVC basket filter is a high-efficiency filtration device widely used in water treatment, chemical processing, food, and other industrial fields. Its unique design effectively removes impurities and solid particles from liquids, ensuring the normal operation of the system.

The filter features multi-layer filter screens, allowing users to select different filtration accuracies based on actual needs, improving filtration efficiency and extending equipment service life. Maintenance and cleaning are simple, as users only need to periodically remove the filter basket for cleaning, reducing maintenance costs and workload.

Contact Us
  • SCH8O/DIN UPVC/CPVC Basket Filter
  • SCH8O/DIN UPVC/CPVC Basket Filter
PREV：SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve
NEXT：SCH8O/DIN UPVC/CPVC SK Type Static Mixer

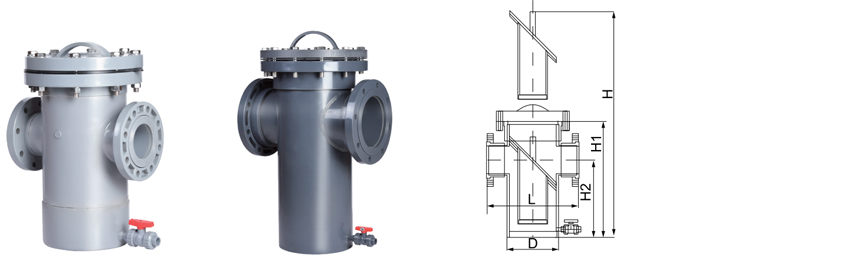

Parameter Application Technical Standards

  • dn

    DN

    L

    H

    H1

    D

    Drain

    20

    15

    180

    475

    260

    75

    dn20

    25

    20

    80

    475

    260

    75

    dn20

    32

    25

    180

    475

    260

    90

    dn20

    40

    32

    200

    490

    270

    90

    dn25

    50

    40

    260

    555

    300

    110

    dn25

    63

    50

    260

    555

    300

    110

    dn25

    75

    65

    330

    665

    360

    140

    dn32

    90

    80

    340

    735

    400

    160

    dn32

    110

    100

    400

    835

    470

    225

    dn32

    140

    125

    480

    985

    550

    280

    dn40

    160

    150

    500

    1145

    630

    280

    dn40

    225

    200

    560

    435

    780

    315

    dn50

    280

    250

    660

    1725

    930

    400

    dn50

    315

    300

    750

    2245

    1200

    450

    dn63
Recommended Products
Company
Zheyi Pipeline (Wuhan) Co., Ltd.
Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group is China SCH8O/DIN UPVC/CPVC Basket Filter For Food Industry/Automotive/Electronic Suppliers and Custom SCH8O/DIN UPVC/CPVC Basket Filter For Food Industry/Automotive/Electronic Factory. We were founded in 2007, specializing in R&D, manufacturing, selling, and service of industrial pipelines of CPVC, and UPVC. It has obtained a Production License of Special Equipment, Zhejiang Province water-related products sanitary license approval document, IS09001 quality management system certificate, IS014001 environmental management system certificate, IS045001 occupational health and safety management system certificate and other certificates. It also holds more than 50 independent intellectual property rights and self-management import and export power. To provide diversified products and better service, the company has introduced advanced technology, tooling equipment, and unique raw materials and management systems from Germany and America. Over the years, our products are widely used in the chemical industry, metallurgy, photovoltaic, nuclear power, lithium, electronic semiconductor, food, medicine, automotive, industrial water treatment and other industries in acid and alkali liquid, ultra-pure water, drinking water, electronic grade water, industrial wastewater pipeline transportation. Currently, ZHEYI Group has set up over 30 sales companies nationwide. Categories of products are exported to Europe, America, Southeast Asia and other countries and regions. Our products are welcomed by customers in domestic and international markets.

Certificate Of Honor
  • ISO 9001:2015
  • ISO 14001:2015
  • ISO 45001:2018
  • ISO 45001:2018
  • ISO:45001-2018 En
  • national high-tech enterprise
  • Certificate
  • Certificate
News
Message Feedback

SCH8O/DIN UPVC/CPVC Basket Filter Industry knowledge

The key role of UPVC/CPVC Basket Filter in electroplating and chemical wastewater treatment

UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) basket filters play an important role in electroplating, chemical wastewater treatment and multiple key industrial fields due to their excellent corrosion resistance, high mechanical strength and cost-effectiveness. The following are its core application scenarios and value analysis:

1. Electroplating industry: efficient filtration of heavy metal wastewater
Electroplating wastewater contains high concentrations of heavy metals (such as chromium, nickel, copper, etc.). UPVC/CPVC Basket Filter can withstand strong acid (such as sulfuric acid, hydrochloric acid) and strong alkaline environments, effectively intercept suspended particles and plating solution impurities, ensure the stable operation of the wastewater treatment system, and protect subsequent membrane separation or ion exchange equipment.

2. Chemical wastewater treatment: corrosion resistance and long life
Chemical wastewater has complex components (such as organic solvents and strong oxidants). CPVC materials perform well in high temperatures (up to 90°C) and corrosive media. They are suitable for pretreatment in the pesticide, dye, petrochemical and other industries to reduce the risk of blockage of pipes and pumps.

3. Cross-industry key applications
Photovoltaic: Filter silicon powder and chemical residues in etching liquid to ensure the purity of solar cell production.
Electronic Semiconductor: Remove particles in ultrapure water preparation to prevent wafer contamination.
Nuclear Power: Used for particle control in cooling water systems, radiation-resistant modified UPVC meets special safety standards.
Metallurgy: Filter metal oxides in pickling wastewater to recover valuable components.
Medicine: Ensure that microorganisms and particulate matter meet standards in pharmaceutical purified water systems.
Industrial Water Treatment: Protect boilers and cooling towers from scaling and corrosion.
Drinking Water: UPVC filters remove silt and rust in municipal water pretreatment and meet hygiene standards.

4. Summary of core advantages
Corrosion resistance: Adapts to extreme environments with a pH of 0-14, and has a lifespan far exceeding that of metal filters.
Lightweight and easy to maintain: Plastic material is easy to install, and the filter basket can be quickly disassembled and cleaned.
Cost-effectiveness: In acidic wastewater scenarios, it has a greater price advantage than stainless steel filters.
